• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1955/1956

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 20169

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

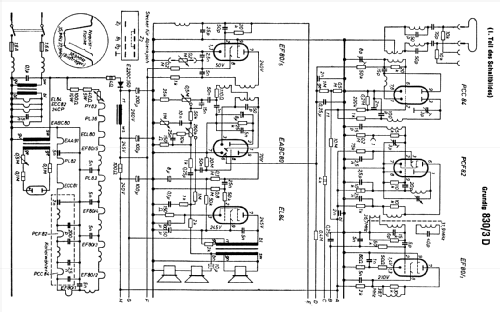

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• PCC84 PCF82 EF80 EF80 EF80 EF80 EAA91 PL83 ECL80 ECC81 PL82 ECC82 PL36 DY80 EF80 EABC80 PY83 EL84 24CP4A

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 830/3D - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 720 x 910 x 580 mm / 28.3 x 35.8 x 22.8 inch

• Notes
• 12 Kanäle im VHF-Bereich. "Magischer Rahmen" mit regelbarer Helligkeit.

• Net weight (2.2 lb = 1 kg)
• 83 kg / 182 lb 13.1 oz (182.819 lb)

• Price in first year of sale
• 2,250.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56
