- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1968/1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 27362
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Original prospekt.
- Number of Transistors
- 21
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 13 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

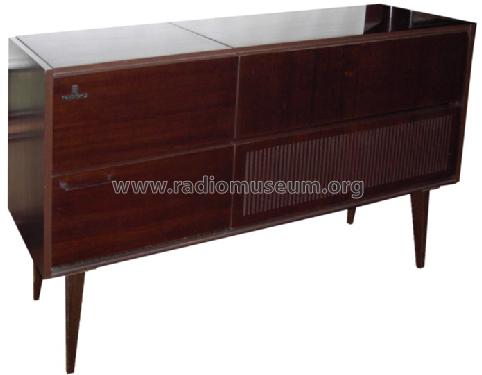

- Model: KS741 - Grundig Radio-Vertrieb, RVF,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1210 x 750 x 370 mm / 47.6 x 29.5 x 14.6 inch
- Notes
- Rundfunk-Chassis = Stereomeister 155; Vollstereo, NF-Verstärker mit zwei Endstufen je 5 W;
Phono-Chassis = Philips AG1035 mit Kristallsystem AG3310.
- External source of data
- erb
- Source of data
- Handbuch VDRG 1968/1969
