AM/FM-Generator AS4 B

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1971

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 142576

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture

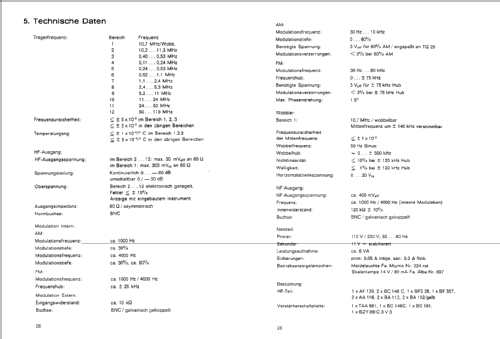

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: AM/FM-Generator AS4 B - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 300 x 218 x 176 mm / 11.8 x 8.6 x 6.9 inch

• Notes
• 0,24 bis 115 MHz in 12 Bereichen.
  Unterscheidet sich vom AS4 durch BNC-Buchsen für Eingang und Ausgang, sowie Wegfall des Kalibriereinstellers und der Instrumentumschaltung.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
