Amsterdam de Luxe 70 Ch= Grundig 8053
Rosita, Theo Schmitz GmbH (Audion); Paderborn
- Country
- Germany
- Manufacturer / Brand
- Rosita, Theo Schmitz GmbH (Audion); Paderborn
- Year
- 1970 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 223703
Privates Angebot aus Oberhausen.
Privates Angebot aus Oberhausen.
Privates Angebot aus Oberhausen.
Privates Angebot aus Oberhausen.
- Number of Transistors
- 21
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 10 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org

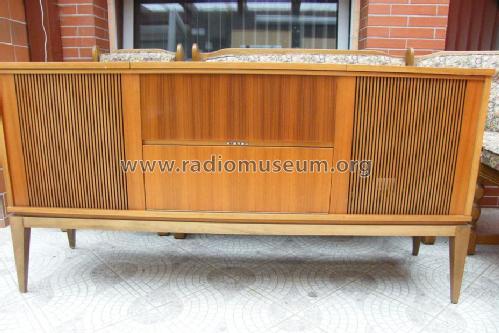

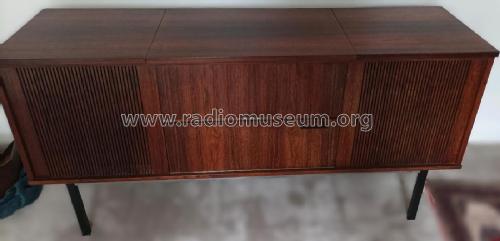

- Model: Amsterdam de Luxe 70 Ch= Grundig 8053 - Rosita, Theo Schmitz GmbH
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1500 x 780 x 400 mm / 59.1 x 30.7 x 15.7 inch
- Notes
-

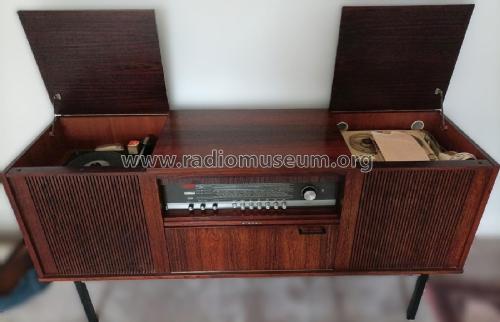

Rosita-Musikschrank Amsterdam de Luxe 70 mit Grundig Radio-Chassis 18 8053-2431 (entspr. Chassis 8053) mit eingebautem Decoder 8 und Plattenwechsler Dual 1210.
NF-Verstärker mit 2 Endstufen je 5 W.
Skalenlämpchen 1x 7 V 0,1 A - 2x 7 V 0,3 A - Anzeigelämpchen 6 V 0,05 A.
- Author
- Model page created by Mario Darmann. See "Data change" for further contributors.
