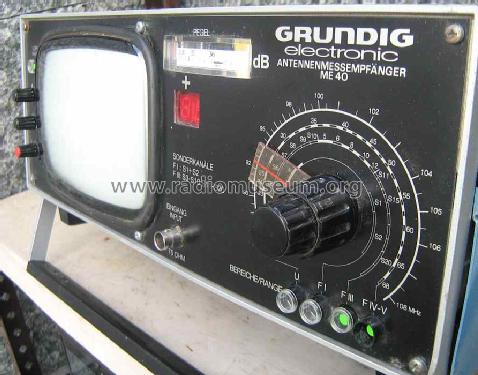

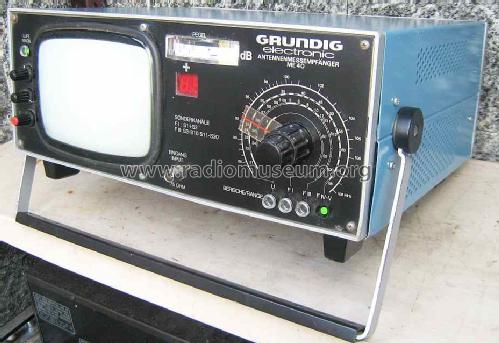

Antennen-Meßempfänger ME40
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1984
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 90965
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- M16-100W
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 220 / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: Antennen-Meßempfänger ME40 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 350 x 160 x 260 mm / 13.8 x 6.3 x 10.2 inch
- Notes
-
Frequenzbereiche: F I: 47 bis 68 MHz und F III :174 bis 230 MHz und FIV/V:470 bis 862 MHz und UKW: 87,5 bis 108 MHz, Sonderkanäle: S 1 bis S 10 bzw. S11 bis S 20, Akku mit bis zu 2 Stunden Betriebsdauer (Ladeschaltung mit Kontrollanzeige ist auf dem vorhandenen Analog-Meßwerk abzulesen), 16-cm-S/W-Bildröhre.
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Mentioned in
- Grundig technische Informationen 1/2 1984
