• Year
  • 1981–1983
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 132486
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line / Storage batteries (perhaps also batteries) / 220; 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Antennenmeßempfänger ME80 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

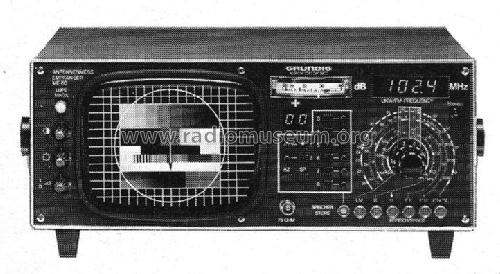

  • Grundig Antennenmeßempfänger ME80.
    TV Band I-V mit Kabel-Sonderkanälen S01 bis S20 und LMKU bis 108 MHz; Stereo-Decoder eingebaut, 8 Senderspeicherplätze, 16-cm-s/w-Bildröhre; analoge Pegelanzeige; Digitalanzeige bei UKW-Frequenzen.
  • Price in first year of sale
  • 3,320.00 DM
  • Mentioned in
  • Funkschau (Heft 4 Feber 1983 Seite 7 Werbeschaltung)
  • Literature/Schematics (1)
  • Funkschau (25/1981, S. 84 / Kurzbericht, Neuvorstellung)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
