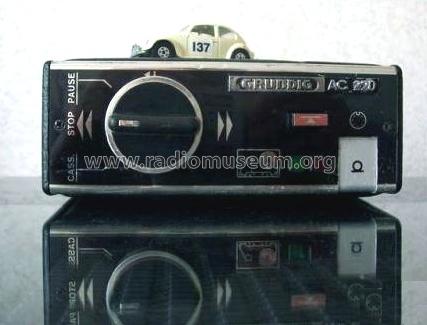

Auto-Cassetten-Tonbandgerät AC220

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1968–1972

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 27780

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

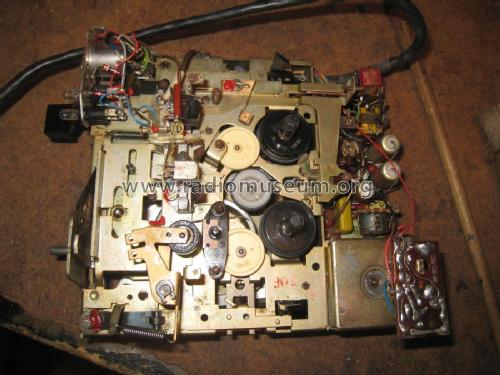

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BC109 BC108 BC108 BC108 BC108 BC108 BC223 AC128 BC148 AD161

• Main principle
• Audio-Amplification

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Powered by external power supply or a main unit. / 6, 12 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: Auto-Cassetten-Tonbandgerät AC220 - Grundig Radio-Vertrieb, RVF,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 170 x 60 x 160 mm / 6.7 x 2.4 x 6.3 inch

• Notes
• Metallgehäuse mit Kunstlederbezug.

• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1969/1970

• Mentioned in
• Handbuch VDRG 1970/1971

• Literature/Schematics (1)

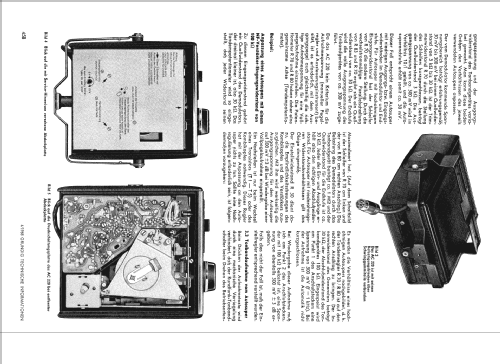

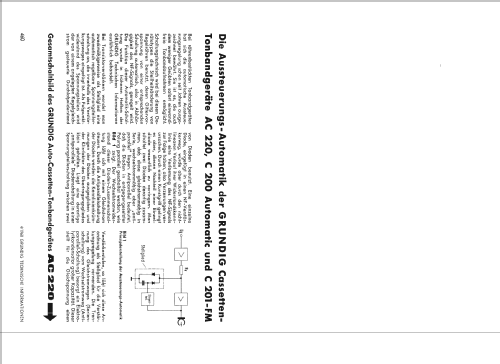

• - - Manufacturers Literature (Grundig Technische Informationen 4/1968)
