Boy 45

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Year
1995

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
122930

- alternative name: Grundig Portugal || Grundig USA / Lextronix

Schematics

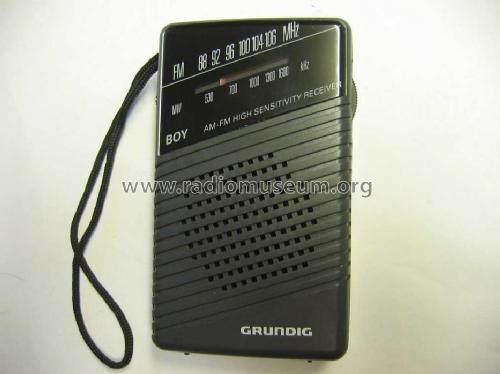

Boy 45; Grundig Radio- (ID = 401284) Radio — Grundig Radio- Boy 45 (1)

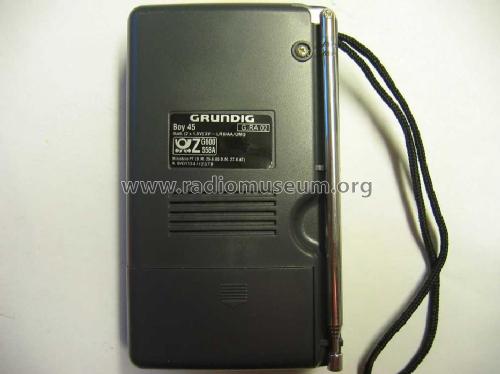

Boy 45; Grundig Radio- (ID = 401285) Radio — Grundig Radio- Boy 45 (1)

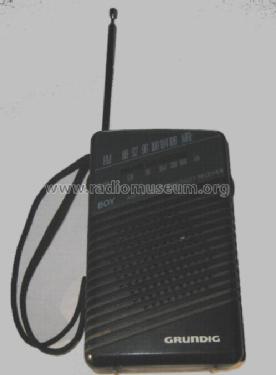

Boy 45; Grundig Radio- (ID = 1094471) Radio — Grundig Radio- Boy 45 (1)

Boy 45; Grundig Radio- (ID = 1110243) Radio — Grundig Radio- Boy 45 (2)

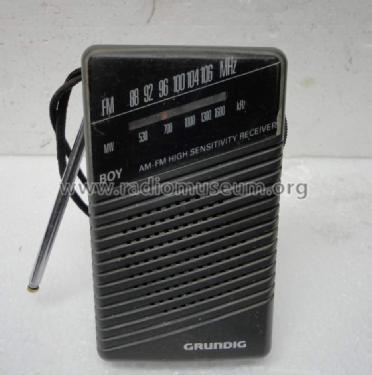

Boy 45; Grundig Radio- (ID = 1347287) Radio — Grundig Radio- Boy 45 (1)

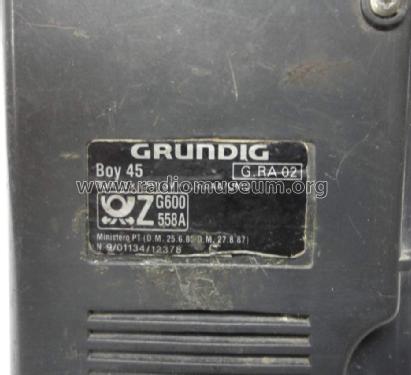

Boy 45; Grundig Radio- (ID = 1347288) Radio — Grundig Radio- Boy 45 (1)

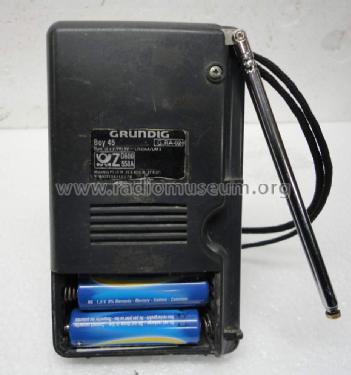

Boy 45; Grundig Radio- (ID = 1347289) Radio — Grundig Radio- Boy 45 (1)

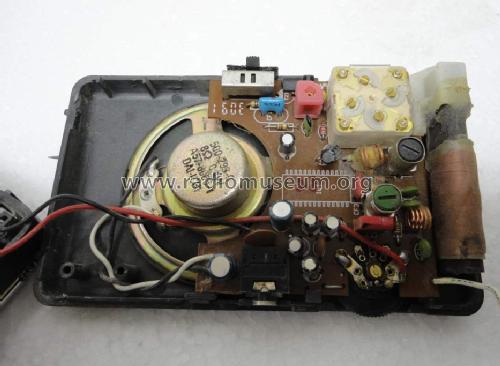

Boy 45; Grundig Radio- (ID = 1347290) Radio — Grundig Radio- Boy 45 (1)

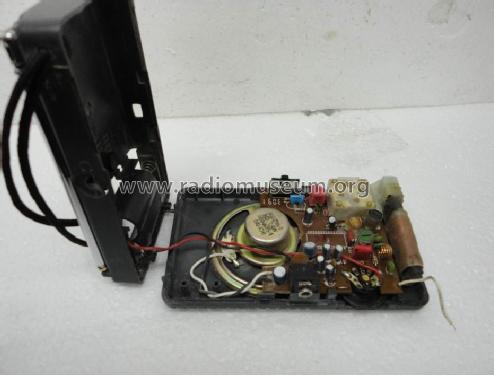

Boy 45; Grundig Radio- (ID = 1347291) Radio — Grundig Radio- Boy 45 (1)

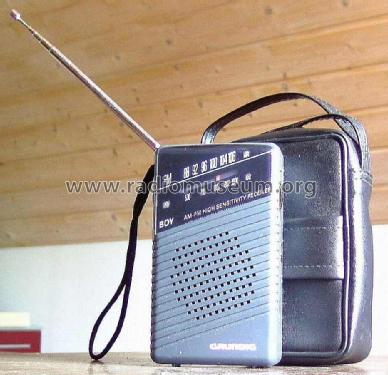

Boy 45; Grundig Radio- (ID = 1501089) Radio — Grundig Radio- Boy 45 (1)

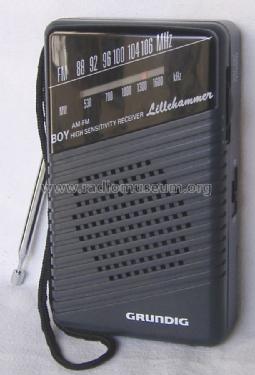

Boy 45; Grundig Radio- (ID = 1617936) Radio — Grundig Radio- Boy 45 (1)

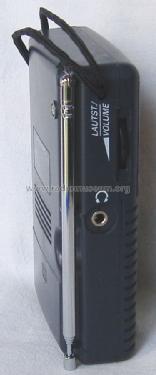

Boy 45; Grundig Radio- (ID = 1617938) Radio — Grundig Radio- Boy 45 (1)

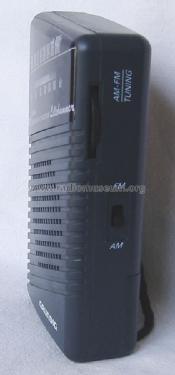

Boy 45; Grundig Radio- (ID = 1617939) Radio — Grundig Radio- Boy 45 (1)

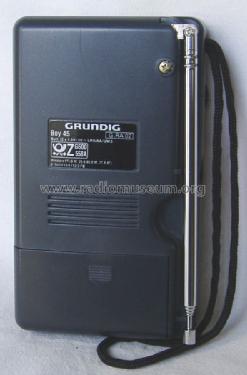

Boy 45; Grundig Radio- (ID = 1617940) Radio — Grundig Radio- Boy 45 (1)

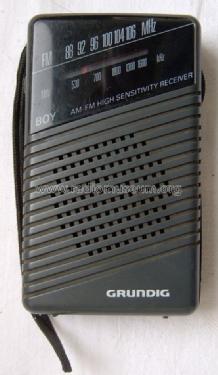

Boy 45; Grundig Radio- (ID = 1706550) Radio — Grundig Radio- Boy 45 (1)

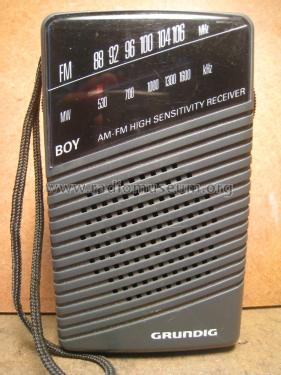

Boy 45; Grundig Radio- (ID = 2021577) Radio — Grundig Radio- Boy 45 (1)

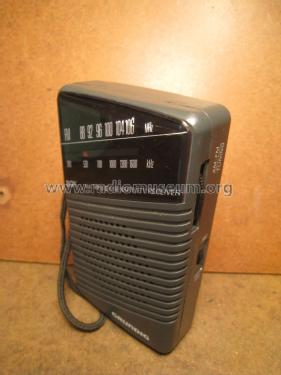

Boy 45; Grundig Radio- (ID = 2021578) Radio — Grundig Radio- Boy 45 (1)

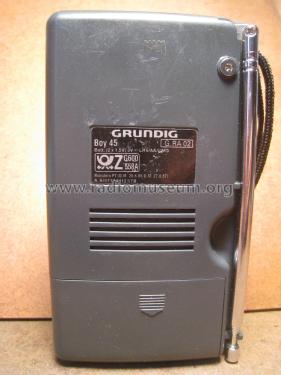

Boy 45; Grundig Radio- (ID = 2021579) Radio — Grundig Radio- Boy 45 (1)

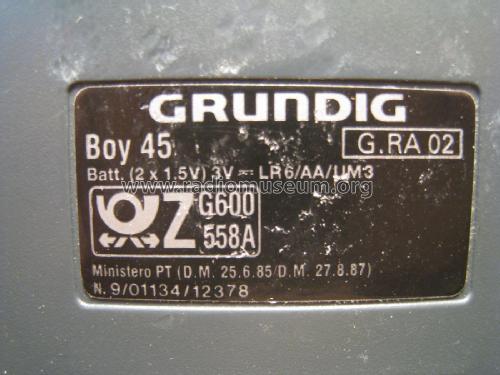

Boy 45; Grundig Radio- (ID = 2021580) Radio — Grundig Radio- Boy 45 (1)

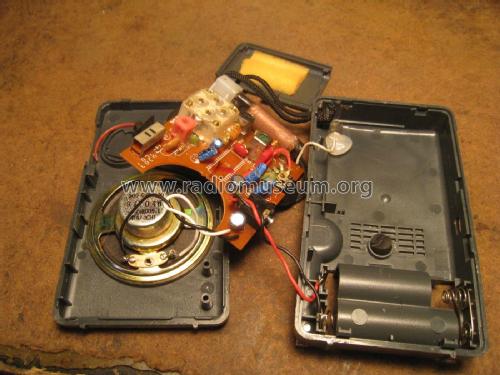

Boy 45; Grundig Radio- (ID = 2021581) Radio — Grundig Radio- Boy 45 (1)

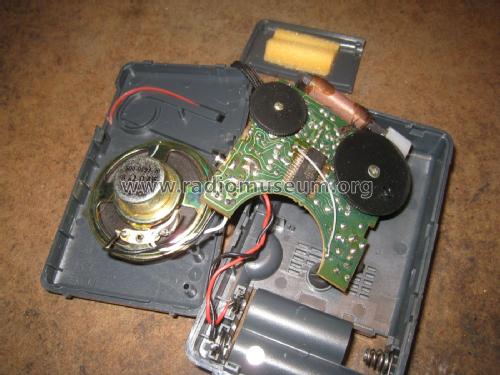

Boy 45; Grundig Radio- (ID = 2021582) Radio — Grundig Radio- Boy 45 (1)

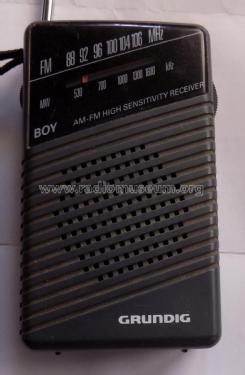

Boy 45; Grundig Radio- (ID = 2158218) Radio — Grundig Radio- Boy 45 (1)

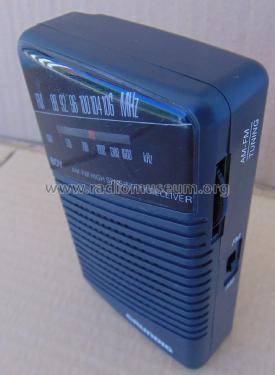

Boy 45; Grundig Radio- (ID = 2642070) Radio — Grundig Radio- Boy 45 (1)

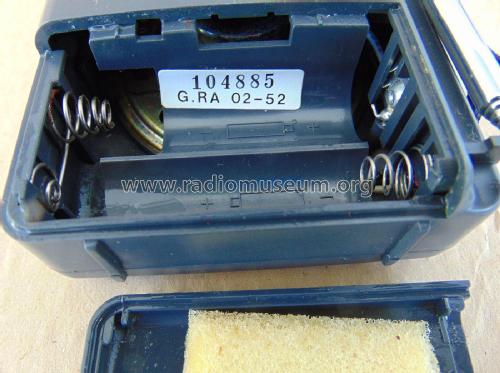

Boy 45; Grundig Radio- (ID = 2642071) Radio — Grundig Radio- Boy 45 (1)

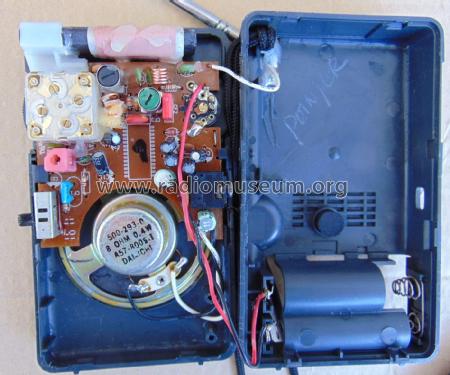

Boy 45; Grundig Radio- (ID = 2642072) Radio — Grundig Radio- Boy 45 (1)

Boy 45; Grundig Radio- (ID = 2816753) Radio — Grundig Radio- Boy 45 (2)
eBay-Artikelnr.:195342343437

Boy 45; Grundig Radio- (ID = 2816754) Radio — Grundig Radio- Boy 45 (2)
eBay-Artikelnr.:195342343437

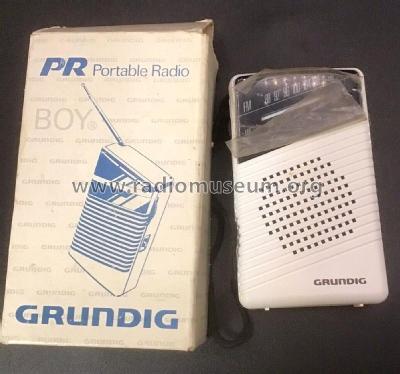

Boy 45; Grundig Radio- (ID = 2816756) Radio — Grundig Radio- Boy 45 (2)
eBay-Artikelnr.:195342343437

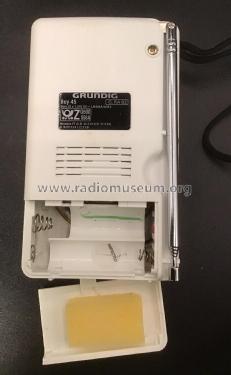

Boy 45; Grundig Radio- (ID = 2816757) Radio — Grundig Radio- Boy 45 (2)
eBay-Artikelnr.:195342343437

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors
CXA1019M

Main principle
Superheterodyne (common)

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Dry Batteries / 2 x 1,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

Power out
0.1 W (undistorted)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Boy 45 - Grundig Radio-Vertrieb, RVF,

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
120 x 70 x 30 mm / 4.7 x 2.8 x 1.2 inch

Notes
Anschluß für Kopfhörer. Batterien vom Typ " Mignon ".

Only 1 IC for all function. No other semiconductors.

Net weight (2.2 lb = 1 kg)
0.175 kg / 0 lb 6.2 oz (0.385 lb)

Source of data
- - Data from my own collection

Author
Model page created by Werner Ehehalt. See "Data change" for further contributors.
