- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1965/1966
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 26284
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

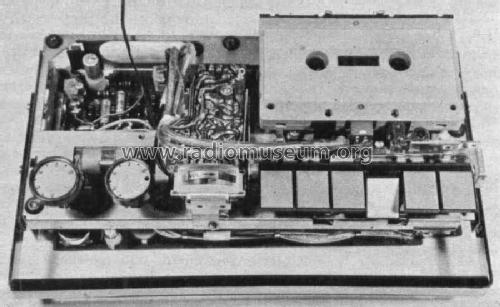

Funktechnik 17. 1965
Funktechnik 17. 1965
Funktechnik 17. 1965
Werbefoto von September 1965.
Anzeige 02/1966.
Werbung in der Zeitschrift Hobby 1965

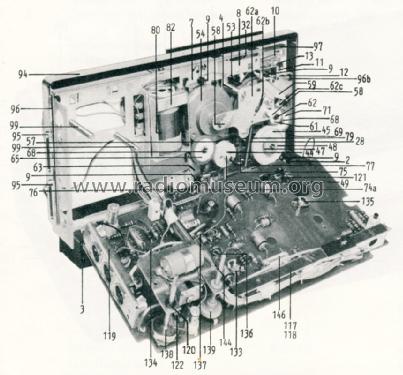

Q: Grundig, Service-Unterlagen
Q: Grundig, Service-Unterlagen
Q: Grundig, Service-Unterlagen
Q: Grundig, Service-Unterlagen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 12
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line plus power jack, mostly with battery or storage battery / 110; 220 / DC 9 / D: 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: C100 - Grundig Radio-Vertrieb, RVF,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 290 x 85 x 190 mm / 11.4 x 3.3 x 7.5 inch
- Notes
-
Grundig Cassettengerät C100 nach System "DC-International", Halbspur-Mono, Bandgeschwindigkeit 5,08 cm/s; Frequenzbereich 40···10000 Hz.
Stromversorgung über einschiebbaren Batteriekasten für 6 Monozellen oder über einschiebbares Netzteil. Anschluss für externe Stromversorgung.
- Net weight (2.2 lb = 1 kg)
- 3.5 kg / 7 lb 11.3 oz (7.709 lb)
- External source of data
- erb
- Source of data
- Handbuch VDRG 1965/1966
- Mentioned in
- Handbuch RFP 1965/66 S.403
- Literature/Schematics (1)
- - - Manufacturers Literature (Grundig Technische Informationen September 1965)
- Other Models
-
Here you find 6208 models, 5433 with images and 4203 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
Collections
The model is part of the collections of the following members.
Literature
The model is documented in the following literature.
Forum contributions about this model: Grundig Radio-: C100
Threads: 1 | Posts: 1

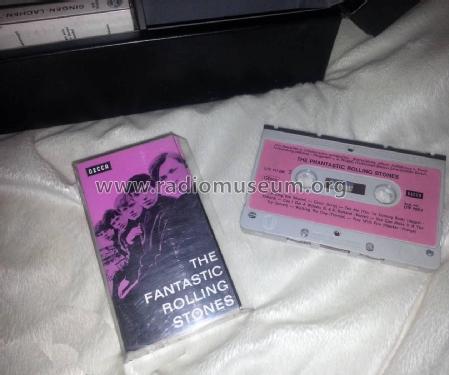

It should be mentioned that the cassette format for these first-generation cassette recorders by Grundig was not the same as the familiar Philips cassette which quickly became dominant in the market. The Grundig cassettes were about the same size and looked almost identical to the Philips, and ran at the slightly higher speed of 2 ips compared to Philips' 1 7/8.
Julian Hardstone, 30.Jan.15
