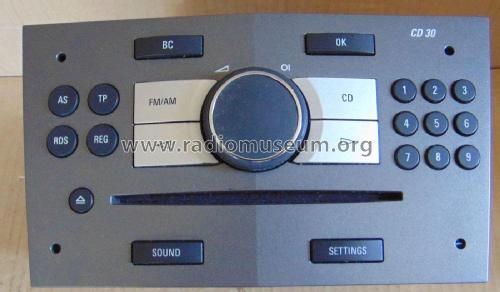

CD 30 GM part 497 316 088

Grundig (Radio-Vertrieb, RVF, Radiowerke)

Data
Forum
Pictures
Collections

  • Year
  • 2006 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 349234
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • CD-Player, -Writer, MD, MOD (audio)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: CD 30 GM part 497 316 088 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 180 x 102 x 165 mm / 7.1 x 4 x 6.5 inch
  • Notes

  • Delphi Grundig Autoradio/CD Kombination CD30 zum Einbau ab Werk in Fahrzeuge der Marken des GM (General Motors) Konzerns. GM Teile-Nr. 497 316 088

    FM/UKW mit RDS-Funktionen, eingebautes slot-in CD-Laufwerk.

    Externes bzw. abgesetztes Display erforderlich.

    Made in Portugal by Delphi Grundig

  • Author
  • Model page created by Manfred Rathgeb. See "Data change" for further contributors.
