CD Player CDP50
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1987 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 204155
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

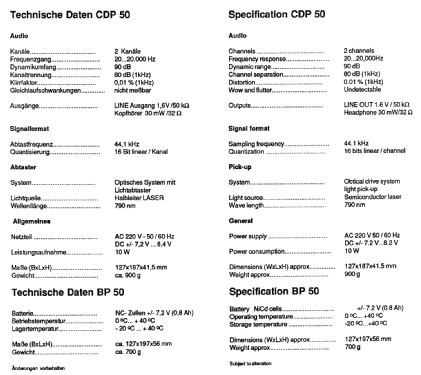

Bild aus Grundig Service Unterlagen

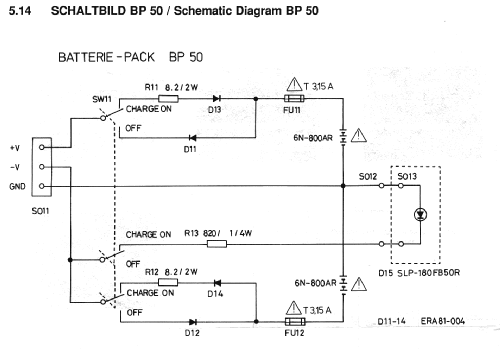

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- CD-Player, -Writer, MD, MOD (audio)
- Power type and voltage
- Batteries / addl. power jack / 2x 1,2/ 7,2 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org
- Model: CD Player CDP50 - Grundig Radio-Vertrieb, RVF,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 127 x 187 x 41.5 mm / 5 x 7.4 x 1.6 inch
- Notes
- CD Player 2 Kanal, Frequenzbereich 20 Hz bis 20000 Hz, Anschluss für externes Netzteil, Batterie 2x Ni-Cd.
- Mentioned in
- Original Grundig Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
