CD Radio Recorder CDM 700
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1999
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 281396
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

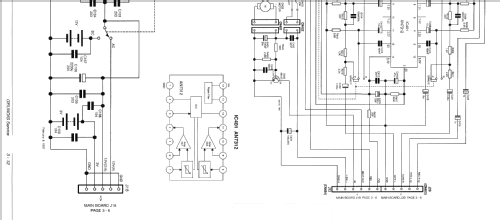

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Other Combination - see Notes; Remote Control (with wire or wireless)
- Power type and voltage
- Line / Batteries (any type) / 230 / 8 x 1,5 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 2 W (3.5 W max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: CD Radio Recorder CDM 700 - Grundig Radio-Vertrieb, RVF,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 470 x 225 x 230 mm / 18.5 x 8.9 x 9.1 inch
- Notes
-
CD Radio Recorder mit UKW, MW, 20 Stationsspeicher, CD-Player 16 Bit/ 2-fach Oversampling, 20 Speicherplätze, Ultra-Bass, Kopfhöreranschluss Klinke 3,5mm, 3-fach Fernbedienung.
- Net weight (2.2 lb = 1 kg)
- 4.7 kg / 10 lb 5.6 oz (10.352 lb)
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Roland Müller. See "Data change" for further contributors.
