CD Radio Recorder RR 630 CD

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1999
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 281357
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

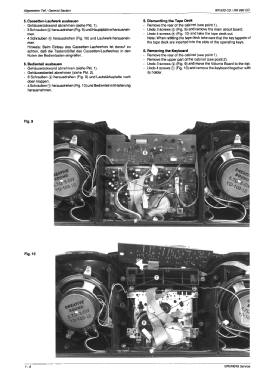

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Line / Batteries (any type) / 230 / 8 x 1,5 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 4.5 W (2.5 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: CD Radio Recorder RR 630 CD - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 440 x 180 x 270 mm / 17.3 x 7.1 x 10.6 inch
  • Notes

  • CD Radio Recorder
    mit UKW, MW, LW, CD-Player 16 Bit/ 8-fach Oversampling,  21 Speicherplätze, Kassettenteil mit automatischer Aussteuerungskontrolle, automatic Loudness, Ultra-Bass, Kopfhöreranschluss Klinke 3,5mm, Farbe Sterlingsilber.

  • Net weight (2.2 lb = 1 kg)
  • 3.8 kg / 8 lb 5.9 oz (8.37 lb)
  • Mentioned in
  • -- Other type before this -same/similar characteristics - see exchange.
  • Author
  • Model page created by Roland Müller. See "Data change" for further contributors.
