CF400

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1982/1983

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 215273

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

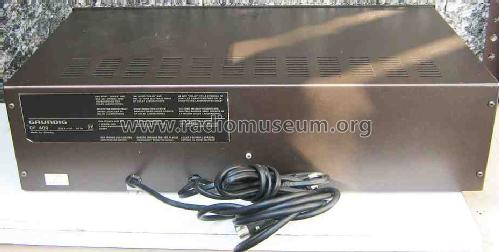

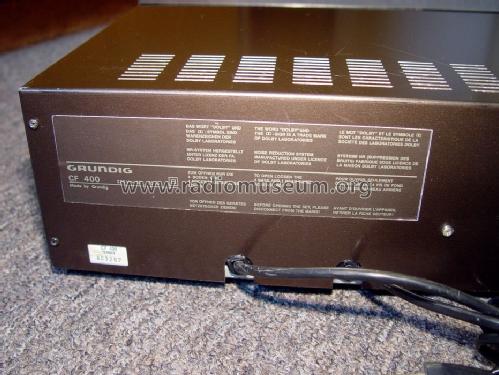

• Picture

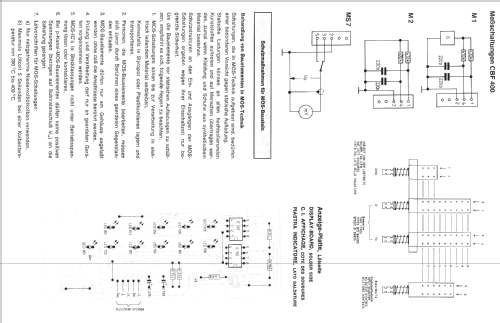

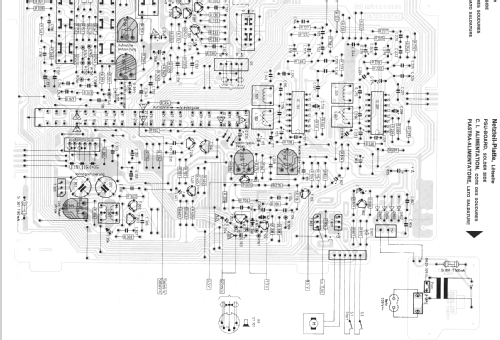

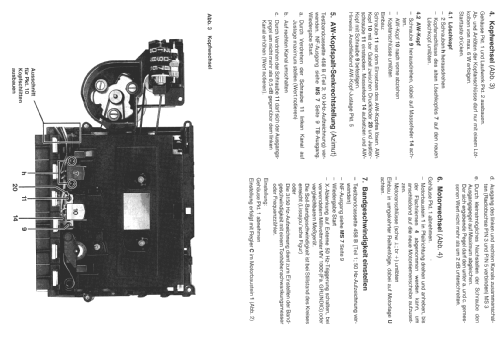

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: CF400 - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 450 x 115 x 280 mm / 17.7 x 4.5 x 11 inch

• Notes
• High Fidely CF400, Dolby, Zähler, Kopfhörerbuchse, Micro-Anschluß-Buchse. Farbe Dunkelbraun.

• Net weight (2.2 lb = 1 kg)
• 4.4 kg / 9 lb 11.1 oz (9.692 lb)

• Mentioned in
• -- Original prospect or advert (Grundig HiFi-Programm 82/83)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
