• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1983

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 125771

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

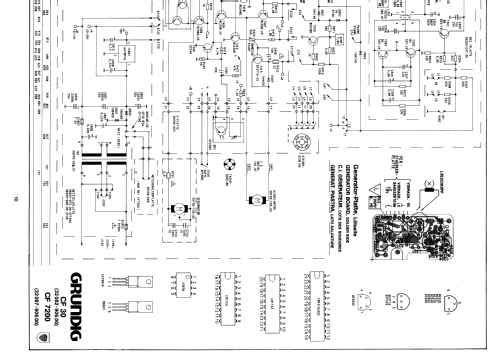

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: CF-7200 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 460 x 77 x 330 mm / 18.1 x 3 x 13 inch

• Notes
• Auto Repeat Stereo Cassetten Deck, LED Aussteuerungsanzeige, Dolby NR B + C, Motor angetriebene Cassettenschublade, mechanisches Zählwerk, silber gebürstete Alufront.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
