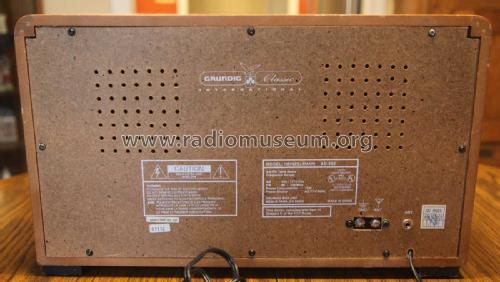

Classic Heinzelmann AD-950

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1997
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 292044
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Classic Heinzelmann AD-950 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 15.25 x 11 x 6.25 inch / 387 x 279 x 159 mm
  • Notes

  • The Grundig Classic International Heinzelmann AD-950 AM/FM Stereo Table Radio was introduced on the occasion of Grundig's 50 year anniversary.

    This is the export version of the domestic Heinzelmann Limited Edition. The differences to model Classic Heinzelmann (without type number) - if any - are currently unknown.

    Wave bands:

    • FM: 88 - 108 MHz
    • MW: 530 - 1710 kHz

    Made in China for Grundig, Box 2307, Menlo Park, CA 94026.
