Clock-Boy 500

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Year
1979–1981

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
87947

- alternative name: Grundig Portugal || Grundig USA / Lextronix

Schematics

Clock-Boy 500; Grundig Radio- (ID = 160496) Radio — Grundig Radio- Clock-Boy 500 (3)

Clock-Boy 500; Grundig Radio- (ID = 160497) Radio — Grundig Radio- Clock-Boy 500 (3)

Clock-Boy 500; Grundig Radio- (ID = 160498) Radio — Grundig Radio- Clock-Boy 500 (3)

Clock-Boy 500; Grundig Radio- (ID = 160499) Radio — Grundig Radio- Clock-Boy 500 (3)

Clock-Boy 500; Grundig Radio- (ID = 2321132) Radio — Grundig Radio- Clock-Boy 500 (1)

Clock-Boy 500; Grundig Radio- (ID = 2321133) Radio — Grundig Radio- Clock-Boy 500 (1)

Clock-Boy 500; Grundig Radio- (ID = 2321134) Radio — Grundig Radio- Clock-Boy 500 (1)

Clock-Boy 500; Grundig Radio- (ID = 2321135) Radio — Grundig Radio- Clock-Boy 500 (1)

Clock-Boy 500; Grundig Radio- (ID = 171675) Radio — Grundig Radio- Clock-Boy 500 (1)

Clock-Boy 500; Grundig Radio- (ID = 1593820) Radio — Grundig Radio- Clock-Boy 500 (1)

Clock-Boy 500; Grundig Radio- (ID = 171674) Radio — Grundig Radio- Clock-Boy 500 (1)

Clock-Boy 500; Grundig Radio- (ID = 1699792) Radio — Grundig Radio- Clock-Boy 500 (1)

Clock-Boy 500; Grundig Radio- (ID = 1804333) Radio — Grundig Radio- Clock-Boy 500 (1)

Clock-Boy 500; Grundig Radio- (ID = 1804334) Radio — Grundig Radio- Clock-Boy 500 (1)

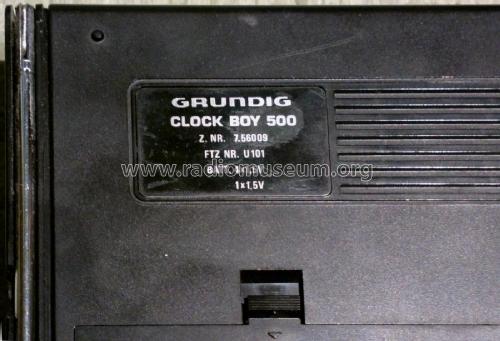

Clock-Boy 500; Grundig Radio- (ID = 1804335) Radio — Grundig Radio- Clock-Boy 500 (1)

Clock-Boy 500; Grundig Radio- (ID = 1804336) Radio — Grundig Radio- Clock-Boy 500 (1)

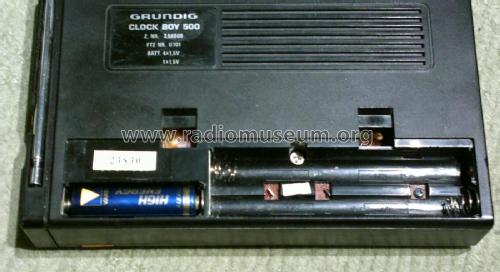

Clock-Boy 500; Grundig Radio- (ID = 1804337) Radio — Grundig Radio- Clock-Boy 500 (1)

Clock-Boy 500; Grundig Radio- (ID = 1804338) Radio — Grundig Radio- Clock-Boy 500 (1)

Clock-Boy 500; Grundig Radio- (ID = 1804339) Radio — Grundig Radio- Clock-Boy 500 (1)

Clock-Boy 500; Grundig Radio- (ID = 1804341) Radio — Grundig Radio- Clock-Boy 500 (1)

Clock-Boy 500; Grundig Radio- (ID = 1804343) Radio — Grundig Radio- Clock-Boy 500 (1)

Clock-Boy 500; Grundig Radio- (ID = 2498413) Radio — Grundig Radio- Clock-Boy 500 (1)

Clock-Boy 500; Grundig Radio- (ID = 2498414) Radio — Grundig Radio- Clock-Boy 500 (1)

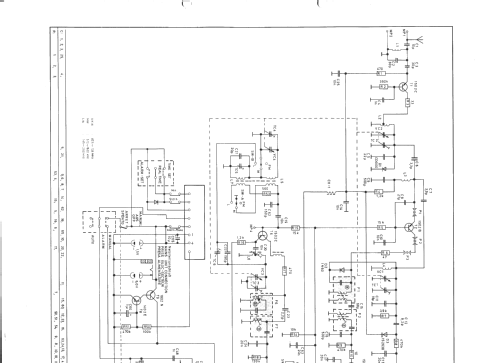

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
7

Semiconductors

Main principle
Superheterodyne (common); ZF/IF 460 kHz

Tuned circuits
6 AM circuit(s) 10 FM circuit(s)

Wave bands
Broadcast, Long Wave and FM or UHF.

Power type and voltage
Batteries / addl. power jack / 4 x 1,5 / 6 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Clock-Boy 500 - Grundig Radio-Vertrieb, RVF,

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
180 x 120 x 32 mm / 7.1 x 4.7 x 1.3 inch

Notes
Grundig 3 Band Receiver with Clock Model Clock Boy 500.
Made in Hong Kong.

ICs 1 und LCD Anzeige für Uhr. Zusätzlich 1,5 Volt Batterie für Uhr

Net weight (2.2 lb = 1 kg)
0.4 kg / 0 lb 14.1 oz (0.881 lb)

Mentioned in
Funkschau (22/1979, S. 1269 / Internationale Funkausstellung)

Literature/Schematics (1)
-- Original-techn. papers.

Author
Model page created by Josef Pilz. See "Data change" for further contributors.
