• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1974/1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29310

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

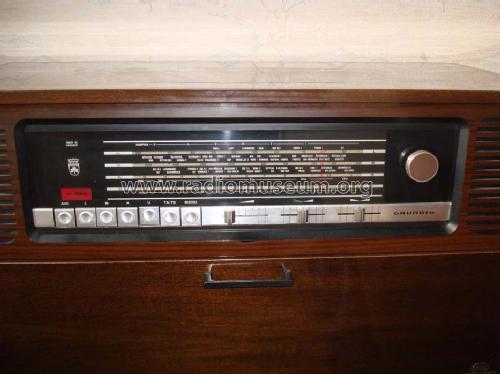

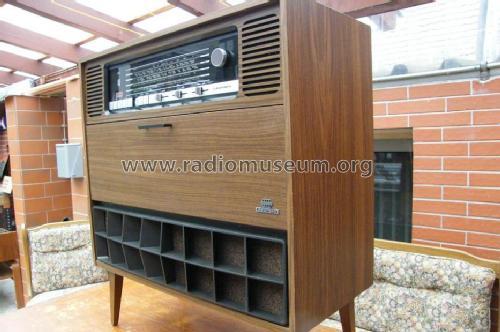

• Model: Como 7S Audioprisma Ch= RC400 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 780 x 730 x 360 mm / 30.7 x 28.7 x 14.2 inch

• Notes

• Rundfunk-Chassis = RC400;
  Stereo-NF-Verstärker mit 2 Endstufen je 5 W;
  Phono-Chassis = Automatik 60 mit Keramiksystem.

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Price in first year of sale
• 550.00 DM

• External source of data
• Erb

• Source of data
• Katalog RFP 1974

• Literature/Schematics (1)
• -- Original-techn. papers.
