• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 149318

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

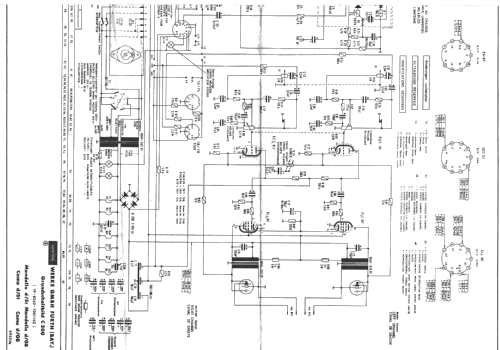

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EAF801 ECC83 EM87 ELL80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 220,110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Como d/St Ch= C200 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 780 x 820 x 360 mm / 30.7 x 32.3 x 14.2 inch

• Notes

• Stereodekoder 6 nachrüstbar.

• Mentioned in
• -- Original prospect or advert (Prospekt September 1967)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Tilo Heyl. See "Data change" for further contributors.
