• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1967 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 211709

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EAF801 ECC83 EM87 ELL80

• Number of Transistors

• Semiconductors
• AA113 AA113

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; Export model

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

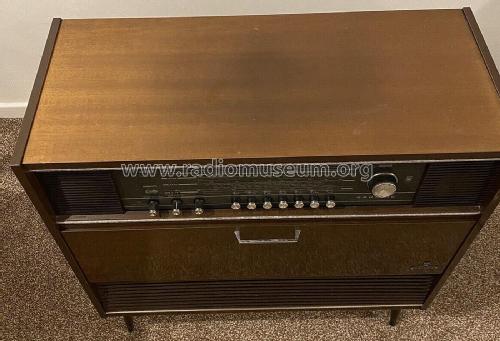

• Model: Stereo-Console Como e/GB Ch= CS200 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 31 x 32 x 13 inch / 787 x 813 x 330 mm

• Notes

• Rundfunk-Chassis = CS200
  UKW Stereo-Automatic-Decoder 6 optional oder eingebaut (unsicher).

• Source of data
• -- Schematic
