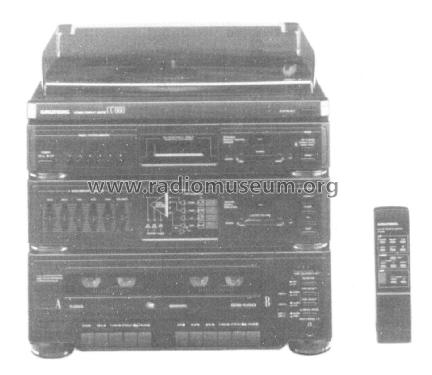

Compact Center CC 660

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1990
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 299860
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

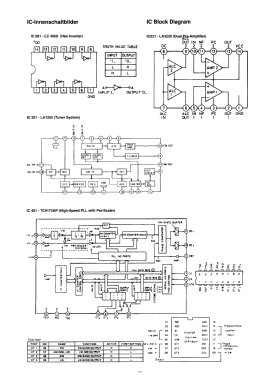

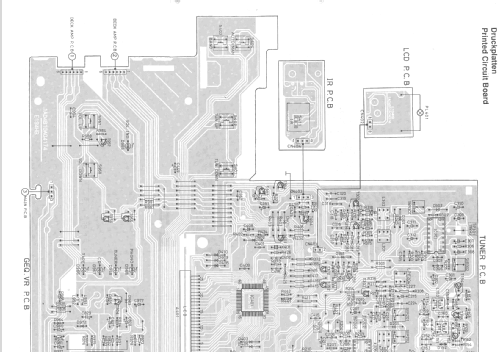

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Other Combination - see Notes; Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 50 W (100 W max.)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Compact Center CC 660 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 360 x 435 x 350 mm / 14.2 x 17.1 x 13.8 inch
  • Notes

  • Compact Center CC 660. Tunerteil: UKW- Stereo, MW, LW. PLL Sendersuchlauf in zwei Richtungen, Handabstimmung, zusätzlicher Schnelldurchlauf. Multifunktions- Display,
    12 x UKW, 6 x MW, 6 x  LW.
    LCD Stereo- Anzeige. Cassettenteil Doppel Frontlader. Plattenspieler: Semi- Automatic- Spieler mit Belt- Drive.

  • Net weight (2.2 lb = 1 kg)
  • 10.5 kg / 23 lb 2 oz (23.128 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
