Compact Center ( High Fidelity ) CC530

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1982 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 215270
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

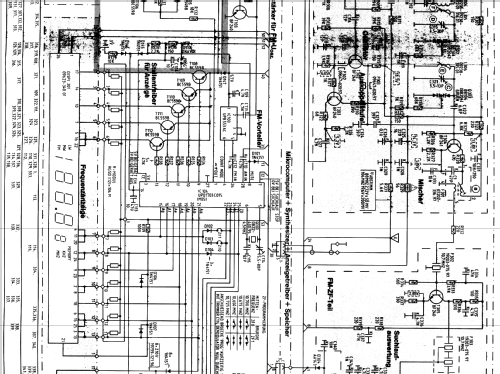

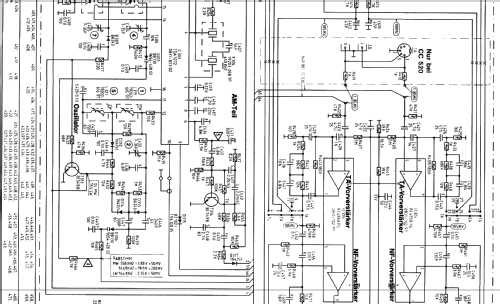

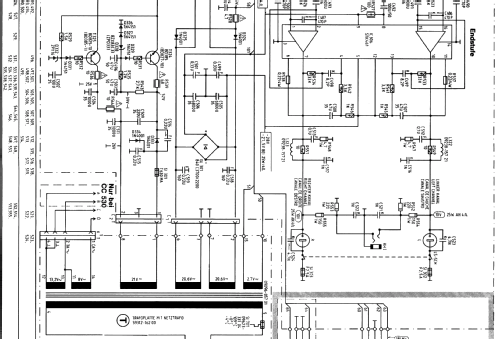

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Other Combination - see Notes; Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Compact Center CC530 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 450 x 330 x 390 mm / 17.7 x 13 x 15.4 inch
  • Notes

  • Grundig Compact Center CC530 (High Fidelity).

    Plattenspieler (Grundig Auto Return 740) mit 33 und 45 Upm.

    Cassette (Dolby System) CBF400.

    Tuner R500 mit Digital-Anzeige und sieben Stationsspeicher-Tasten. Mono/Stereo, NF-Verstärker mit zwei Lautsprecher-Außgängen. Farbe dunkelbraun.

  • Net weight (2.2 lb = 1 kg)
  • 16.4 kg / 36 lb 2 oz (36.123 lb)
  • Source of data
  • - - Data from my own collection
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Karlheinz Fischer. See "Data change" for further contributors.
