Concert Boy 240

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1993 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 168037

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands

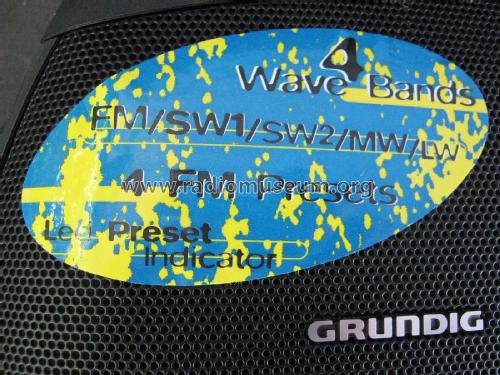

• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage

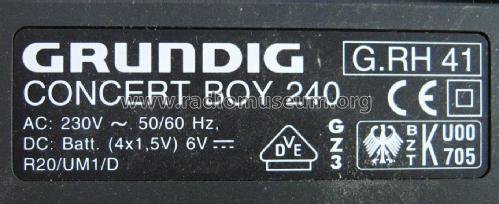

• Line / Batteries (any type) / 230 / D : 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Concert Boy 240 - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 310 x 175 x 100 mm / 12.2 x 6.9 x 3.9 inch

• Notes
• 4-Band Portable Radio, 4x FM-Fixstationen, 7 tlg. schwenkbare Teleskopantenne (50 cm), Tonregler, Kopfhöreranschluß.

• Net weight (2.2 lb = 1 kg)
• 1.4 kg / 3 lb 1.3 oz (3.084 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
