- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1982/1983
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 124986
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

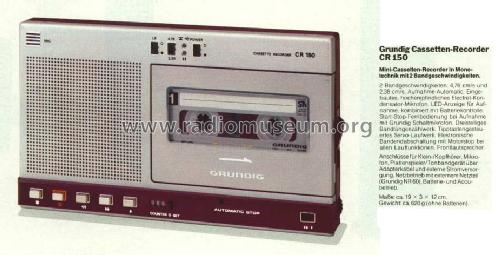

Original prospekt in 1982/83.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 15
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 127/220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.4 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: CR150 - Grundig Radio-Vertrieb, RVF,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 190 x 30 x 120 mm / 7.5 x 1.2 x 4.7 inch
- Notes
- Mono - Kassettenrecorder, Bandgeschwindigkeiten 2,38 & 4,76 cm/sec.
- Net weight (2.2 lb = 1 kg)
- 0.6 kg / 1 lb 5.1 oz (1.322 lb)
- Source of data
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Martin Bösch. See "Data change" for further contributors.
