C200 de Luxe

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1969/1970

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 27807

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

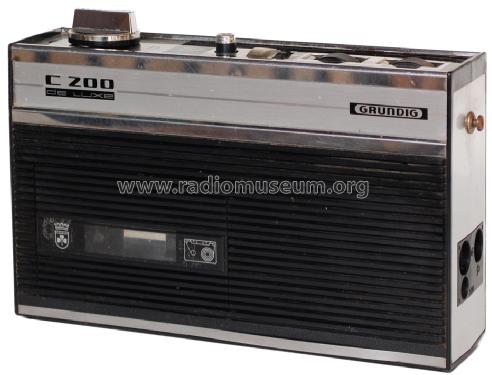

• Picture

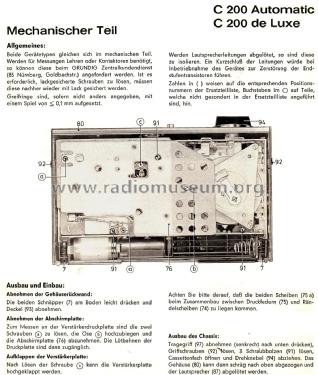

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• BC109 BC108 BC108 BC108 BC108 OC76 BC108 BC181 AC188 AC187 BC148 AC128

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Dry Batteries / D: 5 x 1.5 / DC: 7.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: C200 de Luxe - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 250 x 150 x 70 mm / 9.8 x 5.9 x 2.8 inch

• Notes

• Portable battery or DC-powered cassette player.

  • Type: 2-head, single compact cassette deck
  • Track System: 2-track, single channel
  • Tape Speed: 4.8 cm/s
  • Heads: 1 x playback

  See also the C200 Automatic cassette recorder.

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)
