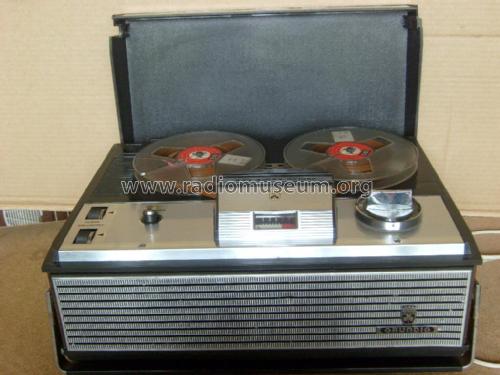

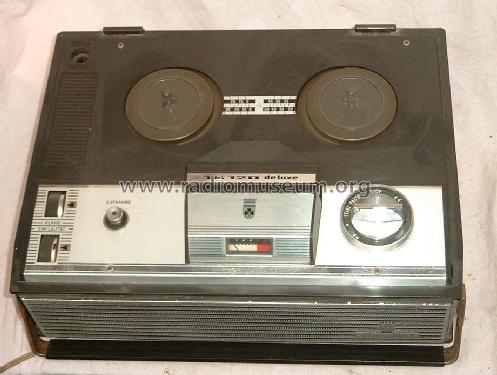

TK120 de Luxe

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1967–1969

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 27217

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture

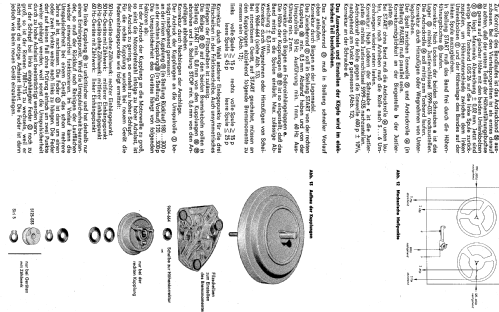

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• BC109 BC107 BC108 BC107 BC108 BC148 AD161 AD162 1S920 1S920 1S920 B30C450 B60C100

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: TK120 de Luxe - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 180 x 290 mm / 15.7 x 7.1 x 11.4 inch

• Notes

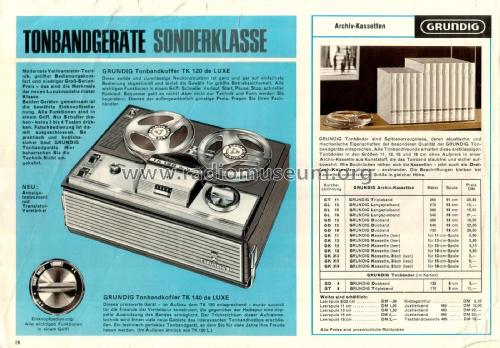

• Grundig Tonbandgerät TK120 de Luxe.
  Zweispur-Mono; Bandgeschwindigkeit: 9,5 cm/s; Spulen-Ø: 15 cm; Übertragungsbereich: 40···12500 Hz.
  Parallelgerät zu Unitra ZK120T

• Net weight (2.2 lb = 1 kg)
• 7.8 kg / 17 lb 2.9 oz (17.181 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1967/1968
