• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1966/1967

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 26650

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC83 ECL86 EM87

• Number of Transistors

• Semiconductors
• E20C3 B250C100 or. EC401

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: TK140 [1966] - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 400 x 180 x 290 mm / 15.7 x 7.1 x 11.4 inch

• Notes

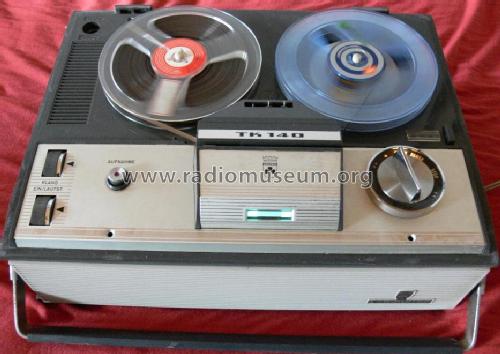

• Grundig Tonbandgerät TK140.
  Bandgeschwindigkeit 9,5 cm/s; Spulen-Ø 15 cm; Frequenzbereich 40···12500 Hz. Mikrofon GDM312 im Lieferumfang.

• Net weight (2.2 lb = 1 kg)
• 8.2 kg / 18 lb 1 oz (18.062 lb)

• Price in first year of sale
• 280.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967
