TK19L Automatic de Luxe k

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Year
1965/1966

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
26289

- alternative name: Grundig Portugal || Grundig USA / Lextronix

Schematics

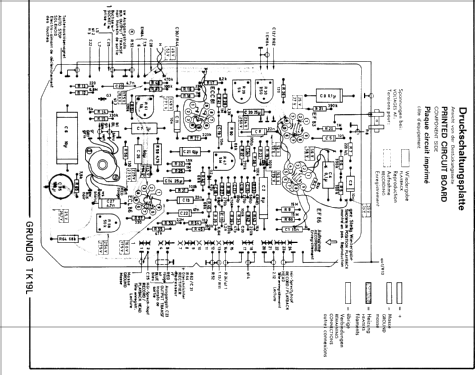

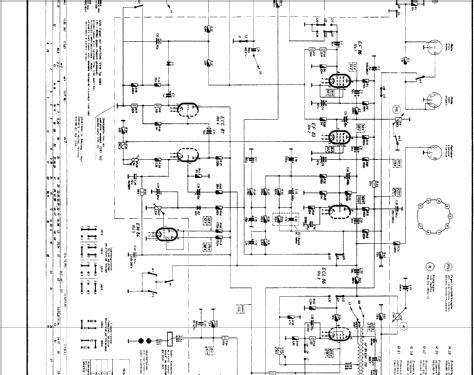

TK19L Automatic de Luxe; Grundig Radio- (ID = 2476355) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

TK19L Automatic de Luxe; Grundig Radio- (ID = 53333) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)
Reus

TK19L Automatic de Luxe; Grundig Radio- (ID = 53334) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)
Reus

TK19L Automatic de Luxe; Grundig Radio- (ID = 53335) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)
Reus

TK19L Automatic de Luxe; Grundig Radio- (ID = 53336) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)
Reus

TK19L Automatic de Luxe; Grundig Radio- (ID = 53337) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)
Reus

TK19L Automatic de Luxe; Grundig Radio- (ID = 53338) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)
Reus

TK19L Automatic de Luxe; Grundig Radio- (ID = 67854) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

TK19L Automatic de Luxe; Grundig Radio- (ID = 2476358) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

TK19L Automatic de Luxe; Grundig Radio- (ID = 67855) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

TK19L Automatic de Luxe; Grundig Radio- (ID = 2476356) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

TK19L Automatic de Luxe; Grundig Radio- (ID = 67856) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

TK19L Automatic de Luxe; Grundig Radio- (ID = 67857) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

TK19L Automatic de Luxe; Grundig Radio- (ID = 67858) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

TK19L Automatic de Luxe; Grundig Radio- (ID = 67859) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

TK19L Automatic de Luxe; Grundig Radio- (ID = 67860) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

TK19L Automatic de Luxe; Grundig Radio- (ID = 67861) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

TK19L Automatic de Luxe; Grundig Radio- (ID = 67862) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

TK19L Automatic de Luxe; Grundig Radio- (ID = 67863) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

TK19L Automatic de Luxe; Grundig Radio- (ID = 67864) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

TK19L Automatic de Luxe; Grundig Radio- (ID = 67865) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

TK19L Automatic de Luxe; Grundig Radio- (ID = 67866) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

TK19L Automatic de Luxe; Grundig Radio- (ID = 430045) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

TK19L Automatic de Luxe; Grundig Radio- (ID = 2449901) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

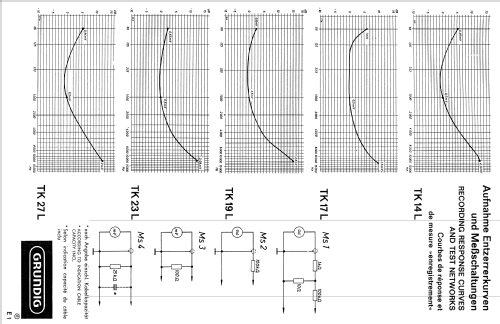

TK19L Automatic de Luxe; Grundig Radio- (ID = 2449902) R-Player — Grundig Radio- TK19L Automatic de Luxe (3)

TK19L Automatic de Luxe; Grundig Radio- (ID = 2977521) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 2476351) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 2476353) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 2476354) R-Player — Grundig Radio- TK19L Automatic de Luxe (2)

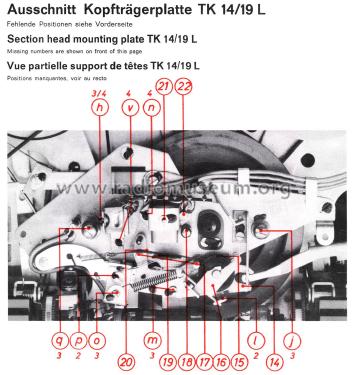

Kopfträgerplatte

TK19L Automatic de Luxe; Grundig Radio- (ID = 1973944) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 2734804) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 399085) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 399087) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 399086) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 53419) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 53421) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 53418) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 53420) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 27416) R-Player — Grundig Radio- TK19L Automatic de Luxe (2)

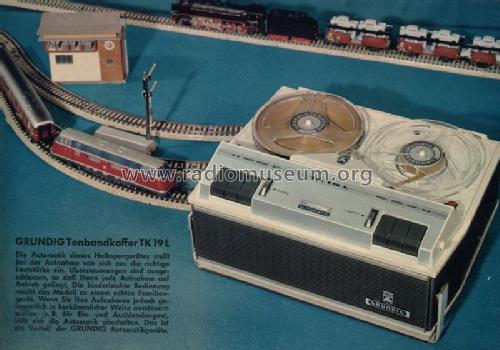

Werbeseite aus Grundig-Tonbandfibel

TK19L Automatic de Luxe; Grundig Radio- (ID = 399088) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 399089) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 399092) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 415045) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 429897) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)
D_Grundig_TK19L

TK19L Automatic de Luxe; Grundig Radio- (ID = 429899) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)
D_Grundig_TK19L_Rueckw.

TK19L Automatic de Luxe; Grundig Radio- (ID = 429900) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)
D_Grundig_TK19L_innen

TK19L Automatic de Luxe; Grundig Radio- (ID = 429901) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)
D_Grundig_TK19L_innen

TK19L Automatic de Luxe; Grundig Radio- (ID = 596110) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 596111) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 1169486) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)
Bedienungsanleitung

TK19L Automatic de Luxe; Grundig Radio- (ID = 1169487) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 1169488) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

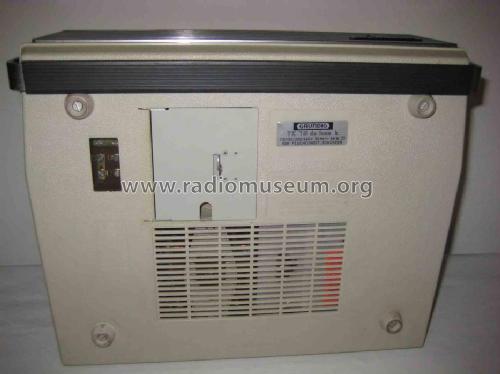

TK19L Automatic de Luxe; Grundig Radio- (ID = 1169489) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)

TK19L Automatic de Luxe; Grundig Radio- (ID = 1675522) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)
Sammlung

TK19L Automatic de Luxe; Grundig Radio- (ID = 1675526) R-Player — Grundig Radio- TK19L Automatic de Luxe (1)
Sammlung

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
EF86 EF83 ECC81 ECL86 EM84

Number of Transistors

Semiconductors
M3 E60C3 B250C100

Main principle
Audio-Amplification

Wave bands
- without

Details
Tape Recorder

Power type and voltage
Alternating Current supply (AC) / 110; 130; 220; 240 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

Power out
4 W (unknown quality)

Material
Various materials

from Radiomuseum.org
Model: TK19L Automatic de Luxe [k] - Grundig Radio-Vertrieb, RVF,

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
340 x 175 x 270 mm / 13.4 x 6.9 x 10.6 inch

Notes

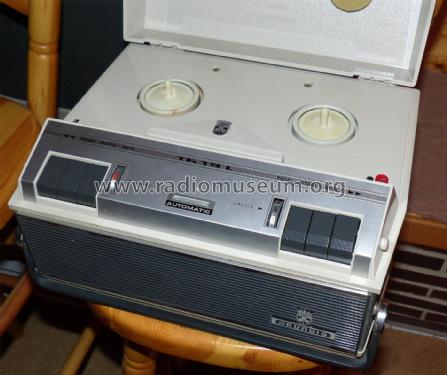

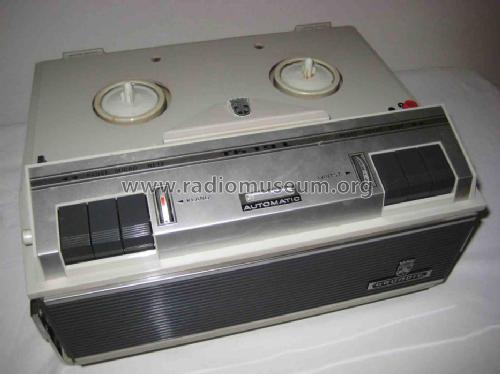

Grundig Tonbandkoffer TK19L AUTOMATIC "de Luxe"
- Halbspur-MONO
- Bandgeschwindigkeit 9,5 cm/s
- Spulen-Ø 15 cm.
- abschaltbare automatische Aufnahme-Aussteuerung
- Frequenzbereich (nach DIN 45 511): 40-12000Hz
- Dynamikumfang (nach DIN 45 405): 50dB
- Stromverbrauch: 55W bei 50Hz
- Eingebaute Band-Klebeschiene
Ähnliche Modelle:
- TK19A Automatic [a] - anderes Gehäuse
- TK19A Automatic U - anderes Gehäuse; umschaltbar für 60Hz
- TK19 [a] - anderes Gehäuse; ohne Aussteuerungsautomatik

Net weight (2.2 lb = 1 kg)
10 kg / 22 lb 0.4 oz (22.026 lb)

Price in first year of sale
385.00 DM

External source of data
erb

Source of data
Handbuch VDRG 1965/1966
