Drucktasten-Transistor-Boy 58E
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 84969
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

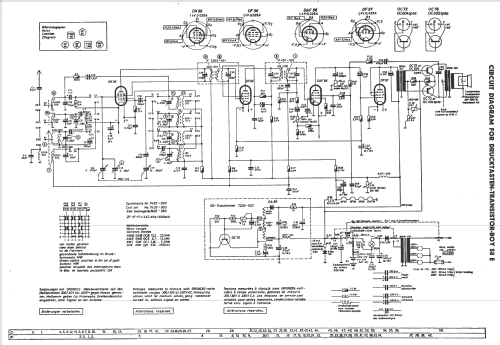

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- 3
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; 3 AF stage(s); Export model
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Line / Batteries (any type) / 110-220; (6; 12) Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- from Radiomuseum.org
- Model: Drucktasten-Transistor-Boy 58E - Grundig Radio-Vertrieb, RVF,
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- Batteriespannung 6 Volt; Autobatterie 6 und 12 Volt, DC-Transformer für Anodenspannung. Exportgerät.
- Literature/Schematics (1)

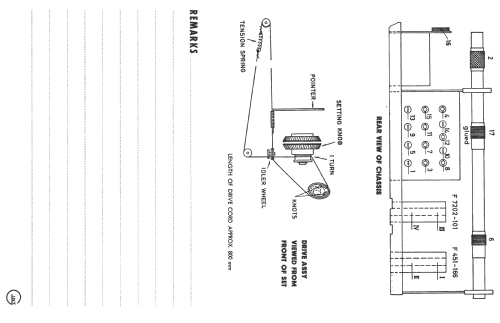

- -- Original-techn. papers.
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
