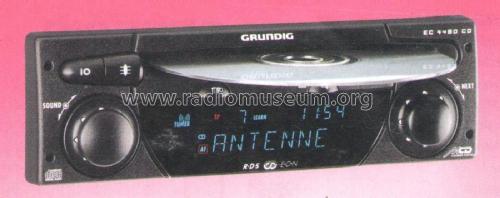

EC4490 CD Infomat

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1998
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 295362
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • CD-Player, -Writer, MD, MOD (audio)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 80 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: EC4490 CD Infomat - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 179 x 51 x 150 mm / 7 x 2 x 5.9 inch
  • Notes

  • Auto Radio, RDS E.O.N., rds tp, vsa, digital tuning aut/manual , OM/OL/FM stereo, 63 presets, ACS, comutation aut/stereo/mono, sensitivity in / impedance mV/W  0,8/75, stereo channels separation  1 kHz 40 dB, CD : converter D/A oversampling 1 Bit /192 X, servomotor efect / fast forward and blackward, function scan/ spintch int, continuous operation / jung titles , frequency response 10 Hz-20 kHz, , signal -to-noise dinamic amplitude  ratio > dB  dB  90/90, Amplifier  4X25 W musical power, comutable loudness , regulation stereo/balance/fader, regulation separate bass and treble , phone mute , SCV,   CD/DAT in/ sensitivity comutable 3 nivel, line output 4, speakers 4 ohms 4 max, comand MD/CD changer in CD 40, 36, vfd (vacuu fluorescent display.

  • Mentioned in
  • Catalog Grundig 1998, Model page 126
  • Author
  • Model page created by Manuel Albano Neves. See "Data change" for further contributors.
