• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1977

• Category
• Miscellaneous (Other, Various) - see notes

• Radiomuseum.org ID
• 281305

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

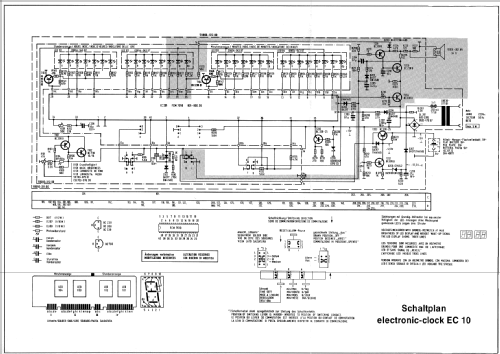

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 + 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Electronic Clock 10 / EC10 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

• Tischuhr mit LED Anzeige und Weckfunktion mittels Lautsprecher. Netzbetrieb 220V und Pufferbatterie 9V

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• - - Manufacturers Literature (Grundig Technische Informationen 2/1977)

• Author
• Model page created by Holger Ortmann. See "Data change" for further contributors.
