• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1967–1971

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 27228

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• AC180 or. AC122 AC187 TAA141 or. TAA263

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Dry Batteries / 2 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

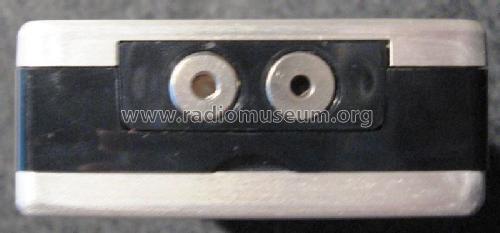

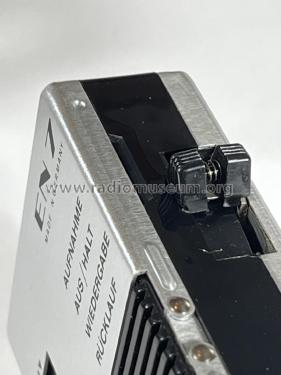

• Model: Elektronisches Notizbuch EN7 [2 Transistoren] - Grundig Radio-Vertrieb, RVF,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 100 x 60 x 25 mm / 3.9 x 2.4 x 1 inch

• Notes

• Zweispur-Mono. Aufnahmezeit 2 × 10 Minuten für Kassette mit Vierfachspielband.

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1967/1968

• Literature/Schematics (1)
• -- Original-techn. papers.
