• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1973/1974

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 211446

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

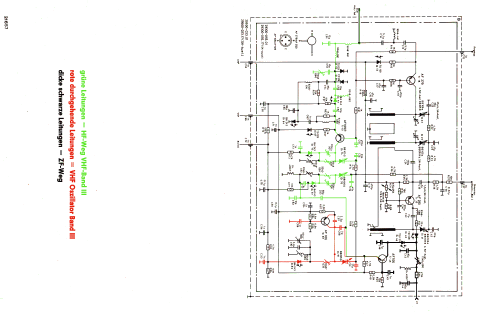

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A31-410W or A31-120W

• Number of Transistors
• Semiconductors present.

• Semiconductors
• BF199 BF457 BC237 BCY85 BC238 BD135 BD136 PT2014 BC232 BC238 BD137 AU113 ON328 B25C2200 TBA120 SN76001 TBA440 TBA920

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage

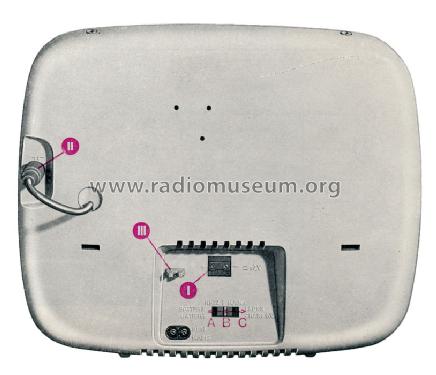

• Line plus power jack, mostly with battery or storage battery / 220/12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Elite 1200 Super Electronic - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 320 x 280 x 280 mm / 12.6 x 11 x 11 inch

• Notes
• Grundig Elite 1200 Super Electrónic.
  31cm s/w-Röhre, vollautomatische Berührungs-Programmwahl, Netz- Auto- oder- Akkubetrieb, Impulse-electronic.

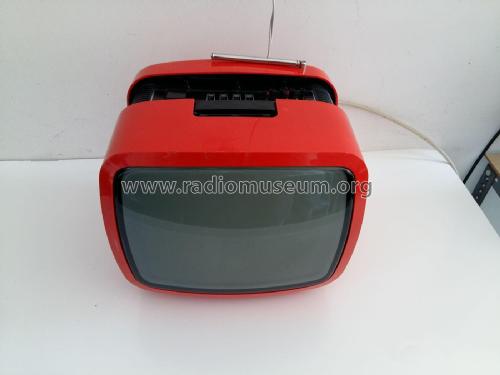

  Ausführung in modeweiß, lichtgelb oder brilliantrot. Verkauf über die Weltfunk anlässlich der Funkausstellung 1975

• Literature/Schematics (1)
• -- Original-techn. papers.
