Elite-Boy 205

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 2188

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

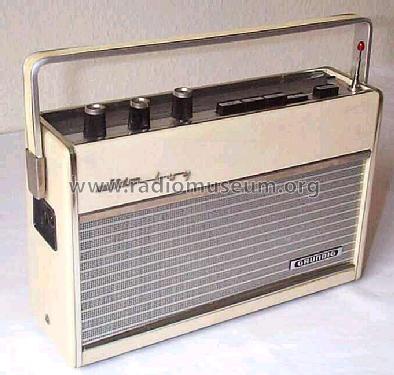

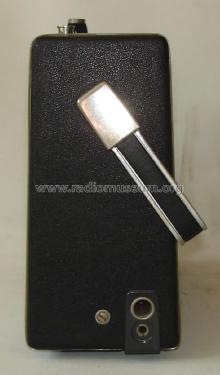

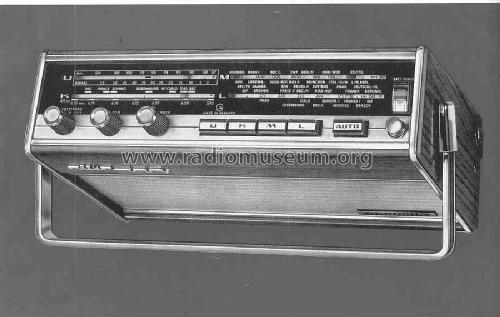

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF178 AF125 AF121 AF126 AF126 AF126 AC126 AC126 AC153 AC153

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 2 × 4,5 or 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Elite-Boy 205 - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 180 x 90 mm / 11 x 7.1 x 3.5 inch

• Notes

• Netzbetrieb mit einsetzbarem oder extern anschließbarem Netzteil TN12 möglich.

  Getrennte Skalen für MW/ LW bzw. KW / UKW. Die beiden Zeiger laufen parallel.

  Kurzzeitbeleuchtung ( 7V/0,035 A) : Abstimmknopf drücken.

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

• Source of data
• Handbuch VDRG 1965/1966 / Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
