Elite-Boy 600

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1974–1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29478

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

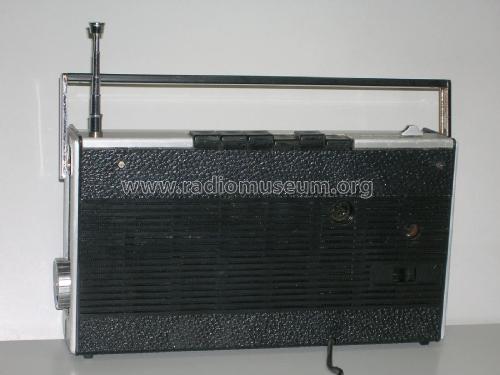

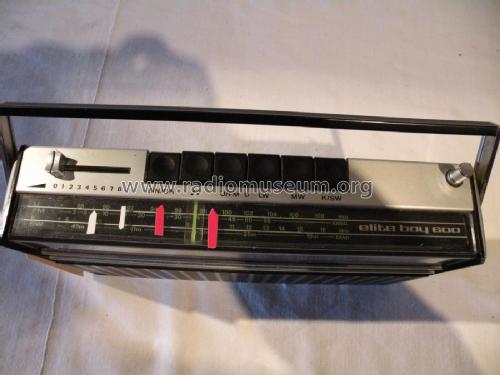

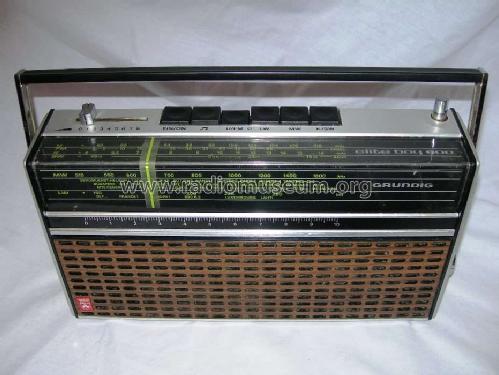

• Picture

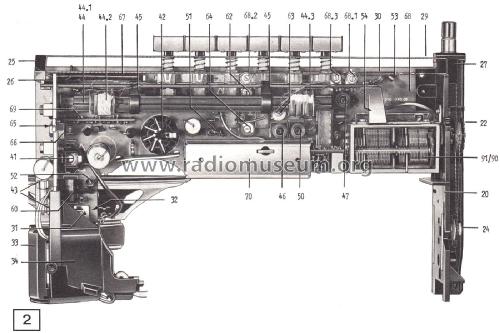

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BF314 BF241 BF241 BF241 BF240 BF241 BC309 BC238 BC238 AC187 AC188 AA112 AA112 AA112 BZ102 BZ102 BZX75 ZW9,1 B30C300

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

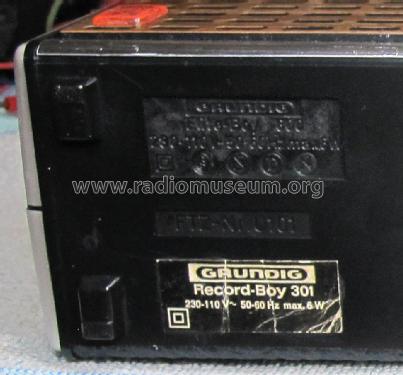

• Power type and voltage
• Line / Batteries (any type) / 110-220 / 2×4,5; 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Elite-Boy 600 - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 170 x 70 mm / 11.4 x 6.7 x 2.8 inch

• Notes
• NF-Ausgangsleistung bei Netzbetrieb: 3 W. Ausführung: nußbaumfarben oder schwarz. Verkauf über die Weltfunk anlässlich der Funkausstellung 1975

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Price in first year of sale
• 198.00 DM

• External source of data
• Erb

• Source of data
• Katalog RFP 1974

• Mentioned in
• Handbuch VDRG 1975/1976

• Literature/Schematics (1)
• -- Original-techn. papers. (Grundig Reparaturhelfer 1973)

• Literature/Schematics (2)
• -- Original-techn. papers. (ETL-Liste November 1974)

• Literature/Schematics (3)
• Taxliste Franzis Verlag (25. Ausg. 1977/78)
