Elite-Boy Luxus 202

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 2146

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

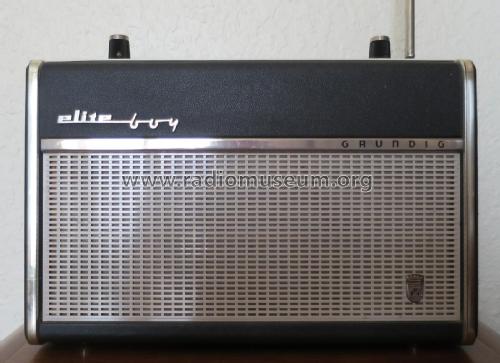

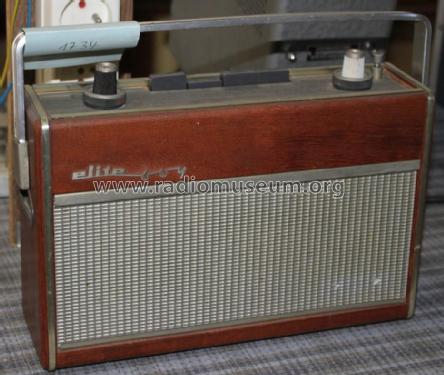

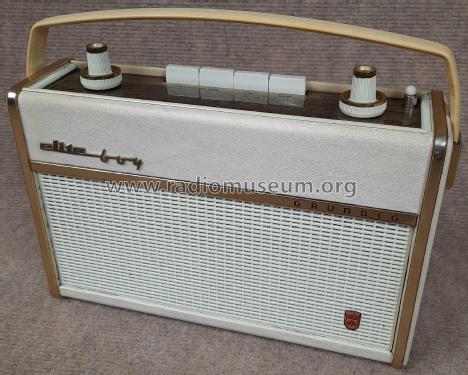

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF124 AF125 AF126 AF126 AF126 OC75 OC75 OC74 OC74

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 2× 4.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.6 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Elite-Boy Luxus 202 - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 276 x 180 x 90 mm / 10.9 x 7.1 x 3.5 inch

• Notes
• Die passende Autohalterung kostete DM 16,50.

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

• Price in first year of sale
• 279.00 DM

• Source of data
• Handbuch VDRG 1962/1963 / Radiokatalog Band 1, Ernst Erb
