• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1972–1974 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 129368

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• PL95 PCL805 PL504 PY88 A50-120W

• Number of Transistors
• 13

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Elite Super Electronic 2030UE - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 450 x 360 mm / 19.3 x 17.7 x 14.2 inch

• Notes

• 51 cm Portable, 8 IC´s, 29 Dioden, VHF/UHF-Tuner, beleuchtete Programmanzeige, Teleskop-Antenne, Fernregler II.

  Senderwahlautomatik, Impulselektronik zur Umschaltung der Sendertasten 1...7

  Antenneneingang:               240 Ohm symmetrisch
  Empfangsbereiche:              Kanäle 2...12
                                               Kanäle 21...60

  Bild-ZF:                                38,9 MHz
  Ton-ZF:                                33,4 MHz

  Lautsprecher:                      1 perm.-dyn. Superphon-System

  Mitgel. Zubehör:                   Teleskop-Ansteckdipol
  Besonderheiten:                   Anschluss für Kleinhörer

  im Fachhandel
  erhältliches Zubehör:           -  UHF-Fensterantenne
                                              -  Kleinhörer 203L
                                               - Tonbandadapter 481
                                               -  Fernregler II (s. Bedienungsanleitung)
                                                Verpackung beinhaltet Nachrüstsatz für den Einbau der
                                                Fernregler-Anschlussbuchse


• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Mentioned in

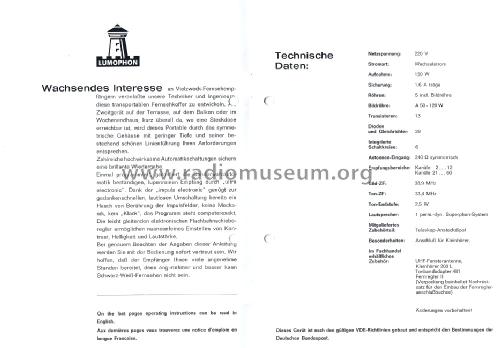

• -- Original-techn. papers. (Weiler Angebot 1973/74)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
