• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1975 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 307058

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

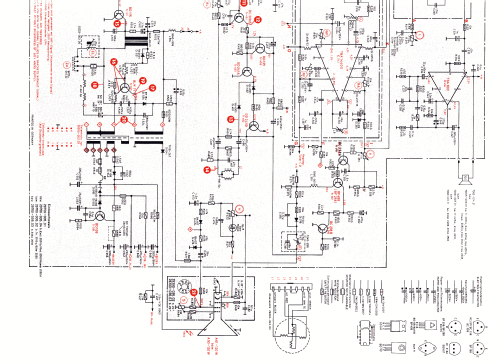

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A61-120W

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3.5 W (max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Exclusiv 854 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 720 x 490 x 390 mm / 28.3 x 19.3 x 15.4 inch

• Notes

• Das Modell Exclusiv 854 von Grundig ist ein Schwarz-Weiß Fernseh-Tischgerät.
  8 manuelle Tasten für die Programm-Umschaltung;
  Bedienteil mit 3 Flachbahn-Schiebereglern für Lautstärke, Helligkeit und Kontrast;
  Softline-Gehäuse - Nußbaumfarben oder Schleiflack-weiß.

• Net weight (2.2 lb = 1 kg)
• 26 kg / 57 lb 4.3 oz (57.269 lb)

• Literature/Schematics (1)
• - - Manufacturers Literature (Grundig Revue 1975)

• Literature/Schematics (2)
• -- Original-techn. papers. (Service-Unterlagen Nov. 1975)

• Author
• Model page created by Jürgen Küting. See "Data change" for further contributors.
