Fine Arts A-903

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1987–1990

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 210615

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture

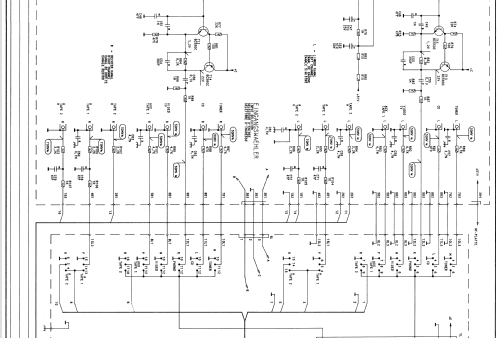

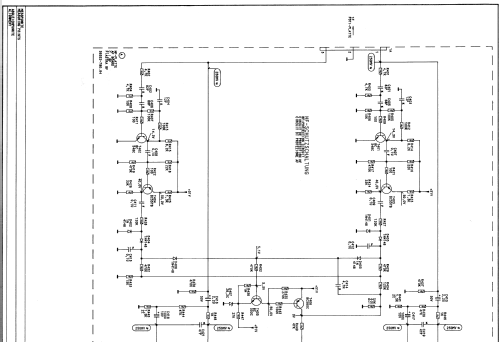

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 200 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Fine Arts A-903 - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 470 x 105 x 340 mm / 18.5 x 4.1 x 13.4 inch

• Notes
• Stereo Vollverstärker mit 2x 100 Watt Sinus an 8 Ohm.
  7 Ein- und 5 Ausgänge.
  Bass-, Treble-, Loudness-Control, High-Filter, Low Filter (SubSonic).
  Seitenwangen aus Holz.

• Net weight (2.2 lb = 1 kg)
• 10.7 kg / 23 lb 9.1 oz (23.568 lb)

• Price in first year of sale
• 1,000.00 DM

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
