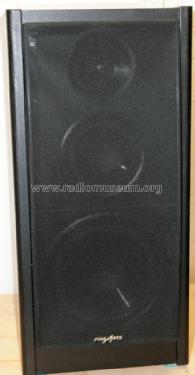

Fine Arts BX 2
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1994/1995
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 210630
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
aus Grundig Katalog 1993
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Fine Arts BX 2 - Grundig Radio-Vertrieb, RVF,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 235 x 486 x 323 mm / 9.3 x 19.1 x 12.7 inch
- Notes
- 3-Wege Baßreflex, Kompaktlautsprecher.
Belastbarkeit (Nenn-/Musikb.): 90/160 Watt
Frequenzgang: 30 - 23.000 Hz
Trennfrequenzen: 600/2.000 Hz
Impedanz: 4 Ohm.
Chassis: Tiefton: 165 mm, Mitteltöner, Hochton: 26 mm.
Farbe: schwarz Dekor.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
