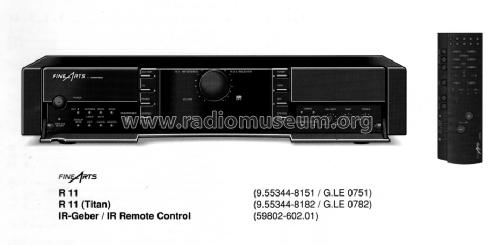

Fine Arts HiFi Stereo RDS Receiver R11

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1995 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 243739
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 100 W (200 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Fine Arts HiFi Stereo RDS Receiver R11 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 435 x 75 x 300 mm / 17.1 x 3 x 11.8 inch
  • Notes

  • HiFi Receiver der Fine Arts Serie. IR-Fernsteuerung, RDS-Tuner.

  • Net weight (2.2 lb = 1 kg)
  • 8 kg / 17 lb 9.9 oz (17.621 lb)

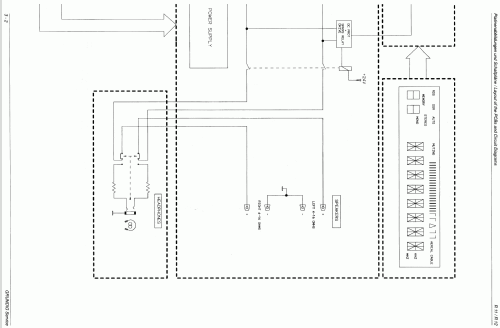

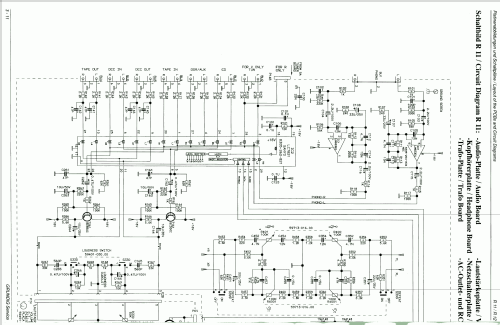

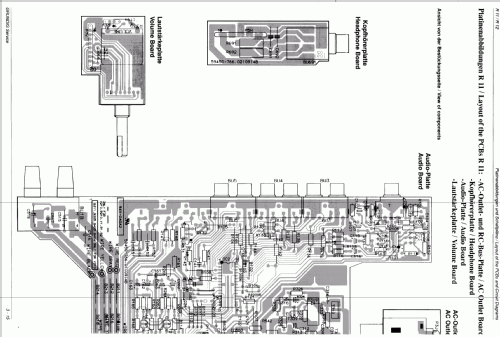

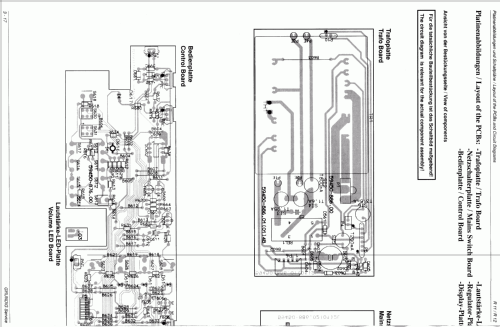

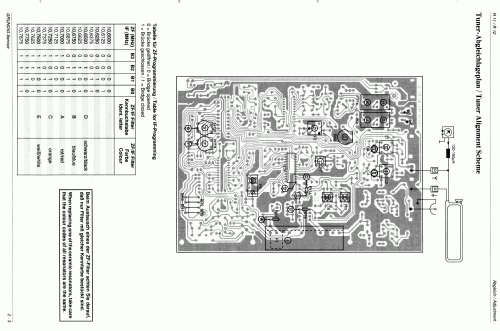

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
