Fine Arts High Definition RDS Synthesizer Tuner T6

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1993 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 228502

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

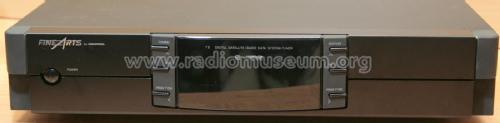

• Picture

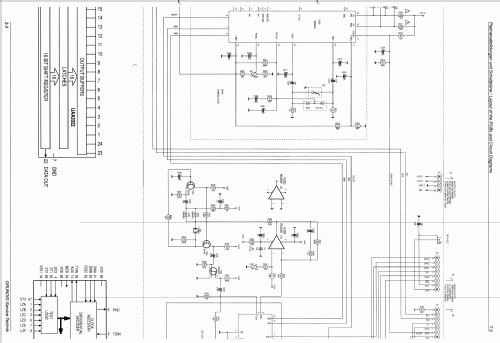

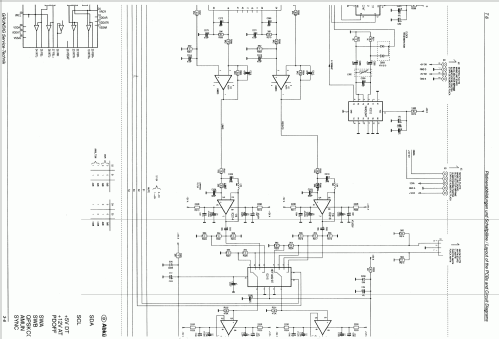

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: Fine Arts High Definition RDS Synthesizer Tuner T6 - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 435 x 75 x 330 mm / 17.1 x 3 x 13 inch

• Notes

• Kombinierter DSR/RDS-Tuner, Analog-Teil:
  Eingangsfrequenzbereich UKW 87,5...108 MHz,
  Digital-Teil: Eingangsfrequenzbereich 50..:855 MHz
  Speicher für 99 DSR-Programme, Eingang für Kabelanschluß 118 MHz, Fernbedienung, Fluoreszenzanzeige ( 5 x 7 Punktmatrix ), Digitalausgang, Gehäuse Schwarz.

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
