Fine Arts V1000 DPL

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1990 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 217756

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture

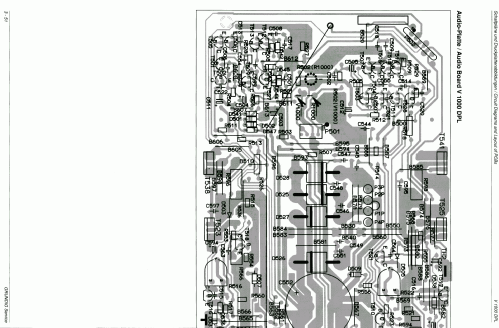

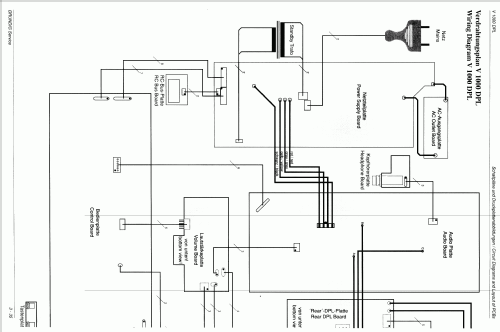

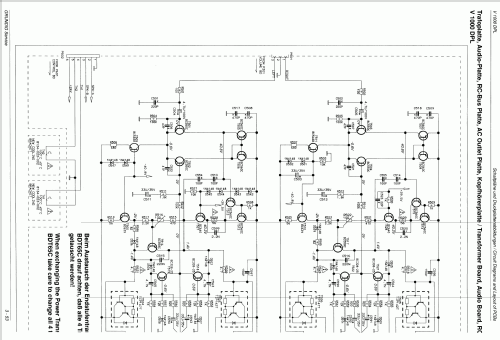

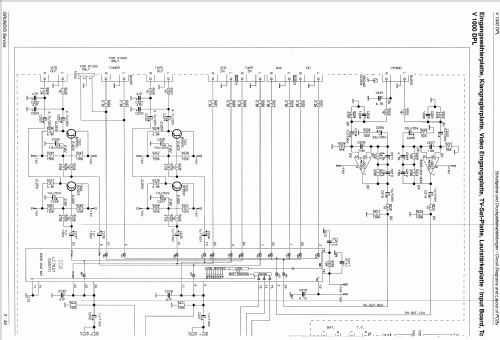

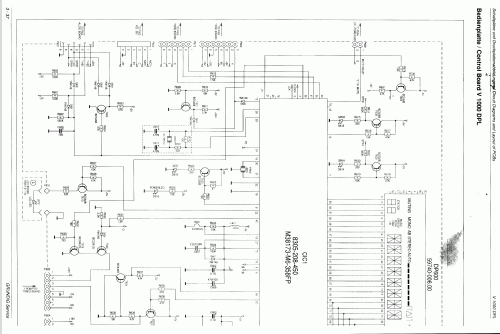

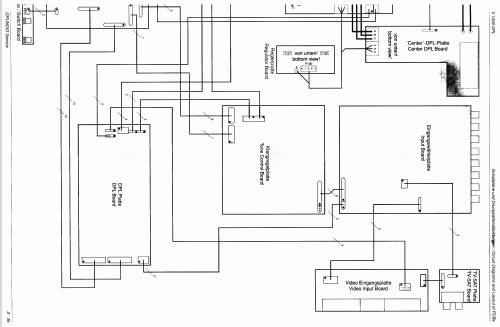

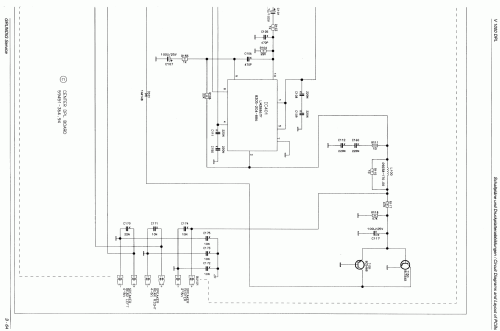

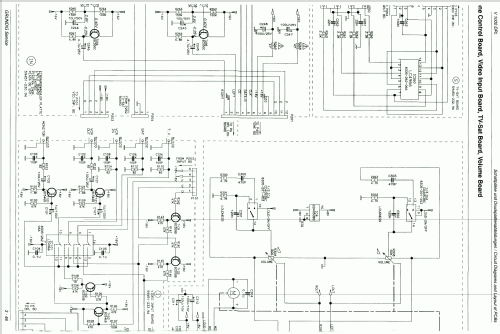

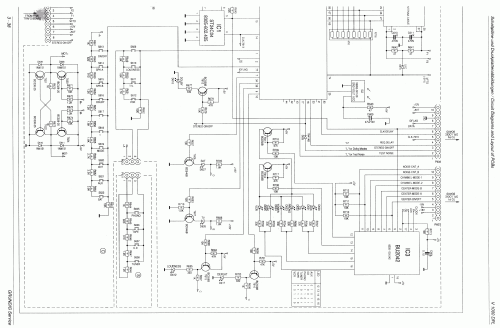

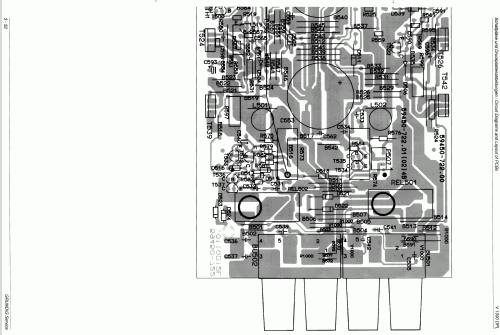

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 360 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Fine Arts V1000 DPL - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 435 x 137 x 300 mm / 17.1 x 5.4 x 11.8 inch

• Notes
• Ausgangsleistung nach DIN 45 500:
  Musikleistung (4 Ω): 2x 180 W
  Sinusleistung (4 Ω, 0,7% Klirrfaktor, f = 1 kHz): 2x 100 W
  Sinusleistung Pro Logic modus: Center, links, rechts: 3x 60 W
  Surround (hinten): 2x 25 W

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Author
• Model page created by Abu Bakar. See "Data change" for further contributors.
