• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1976

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 90934

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

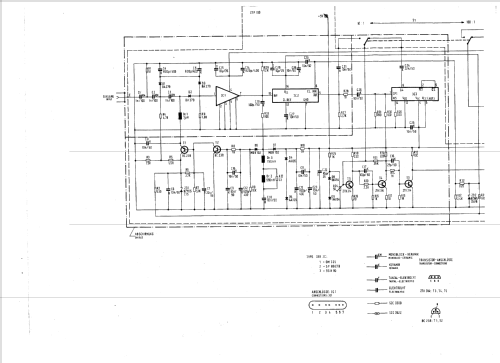

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Frequenzzähler FZ1000 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 210 x 100 x 280 mm / 8.3 x 3.9 x 11 inch

• Notes
• Eingänge: 50 Hz...50 MHz, 50 MHz...1000 MHz; Anzeige mit Nixieröhren.

• Mentioned in
• Grundig technische Informationen 1/2 1976

• Author
• Model page created by a member from A. See "Data change" for further contributors.
