Frequenzzähler FZ58
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1975 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 121148
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
DE5876191122

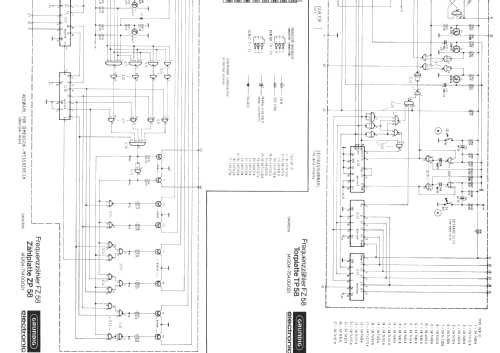

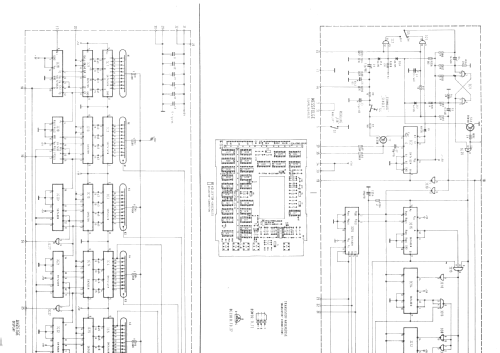

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Frequenzzähler FZ58 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 142 x 118 x 300 mm / 5.6 x 4.6 x 11.8 inch
- Notes

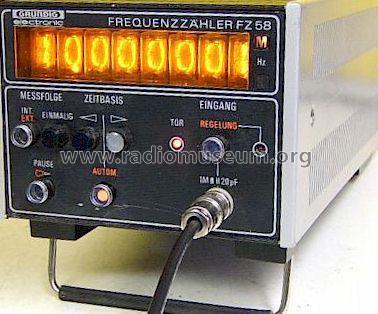

- 8-stellige Nixieröhren Anzeige, kHz und MHz Indikator, BNC Eingang, ~ 10 Hz - 50 MHz, manuelle oder automatische Zeitbasiseinstellung.
- Net weight (2.2 lb = 1 kg)
- 3.6 kg / 7 lb 14.9 oz (7.93 lb)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
