• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1963 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 107357

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

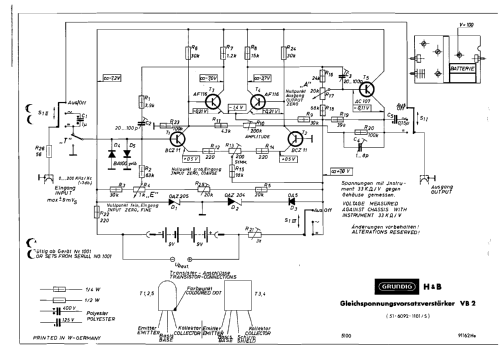

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Dry Batteries / 2 × 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Gleichspannungs-Vorverstärker VB2 - Grundig Radio-Vertrieb, RVF,

• Dimensions (WHD)
• 150 x 50 x 95 mm / 5.9 x 2 x 3.7 inch

• Notes
• Breitbandverstärker mit einer 100-fachen Spannungsverstärkung; Frequenzbereich: 0 - 200 kHz.

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
