Greenville 37 Ch= CUC7350

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1995 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 250585
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

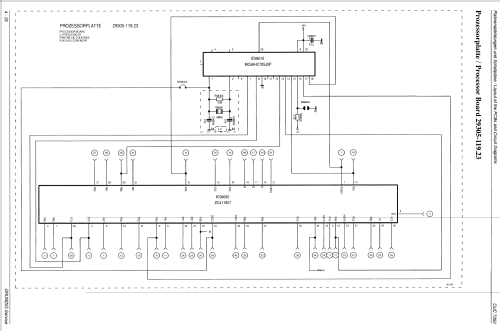

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop; ZF/IF 38900 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 165-265 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 16 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Greenville 37 Ch= CUC7350 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Notes

  • Farbfernseher mit 37cm 90 Grad Bildröhre.
    99 Programmspeicher + 2 AV,
    Hyperband Kabeltuner,
    PAL /SECAM /NTSC 4,43 MHz, BG, DK,
    Stromaufnahme ca 45 W, Standby ca 6 W.

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
