Hi-Fi-Studio 400 PW= 1212
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1969/1970
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 27642
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Original prospekt.
Original prospekt.

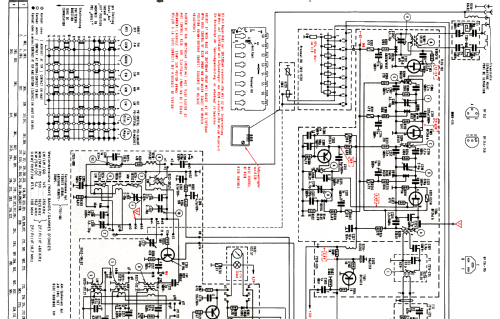

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 43
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 14 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Hi-Fi-Studio 400 [PW= 1212] - Grundig Radio-Vertrieb, RVF,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1060 x 680 x 400 mm / 41.7 x 26.8 x 15.7 inch
- Notes
- Rundfunk-Chassis = RTV400, Stereo-Decoder integriert, Stereo-NF-Verstärker mit 2 Endstufen je 20 W (Sinus);
Phono-Chassis = Dual 1212 mit Magnetsystem M71M-B.
- External source of data
- erb
- Source of data
- Handbuch VDRG 1969/1970
