• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1972–1975

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 104408

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

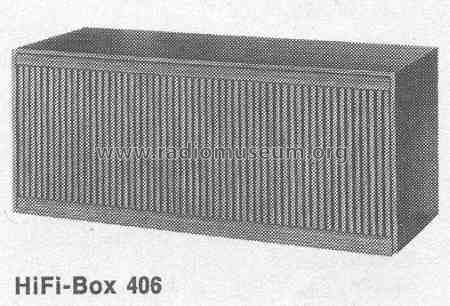

• Model: HiFi-Box 406 - Grundig Radio-Vertrieb, RVF,

• Dimensions (WHD)
• 580 x 240 x 240 mm / 22.8 x 9.4 x 9.4 inch

• Notes
• Impedanz 4 Ohm, Belastbarkeit 25 W, Frequenzgang 40-20000 Hz, 1 Tieftöner 204 mm, 1 Kalottenhochtöner 115x115 mm. Farbvarianten: Nußbaum, Palisander.

• Net weight (2.2 lb = 1 kg)
• 10.8 kg / 23 lb 12.6 oz (23.789 lb)

• Price in first year of sale
• 248.00 DM

• Source of data
• Handbuch VDRG 1972/1973

Die GRUNDIG Zweiweg-Boxenfamilie, Grundig Techn. Information (TI), W.Bart, 2/1973, S.129ff.

603 KB

• Documents regarding this model

• Author
• Model page created by Lars Brötje. See "Data change" for further contributors.
