HiFi-Micro-System UMS 2

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1996 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 243936
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

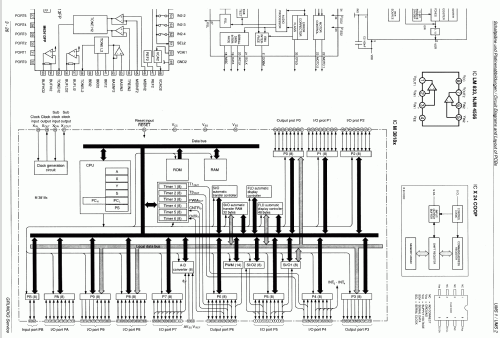

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Other Combination - see Notes; Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 40 W (60 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: HiFi-Micro-System UMS 2 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

  • HiFi Micro Kompaktanlage mit RDS-Tuner, CD-Spieler und Kassettenlaufwerk. IR-Fernsteuerung und 2 Lautsprecherboxen im Lieferumfang.

  • Literature/Schematics (1)

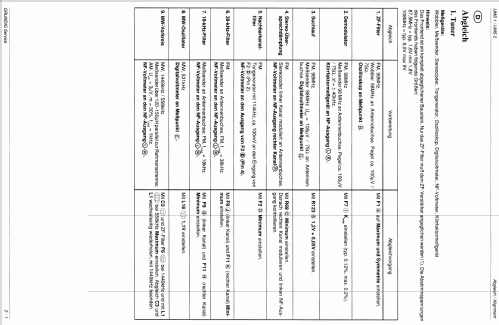

  • -- Original-techn. papers.
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
